Exploded View

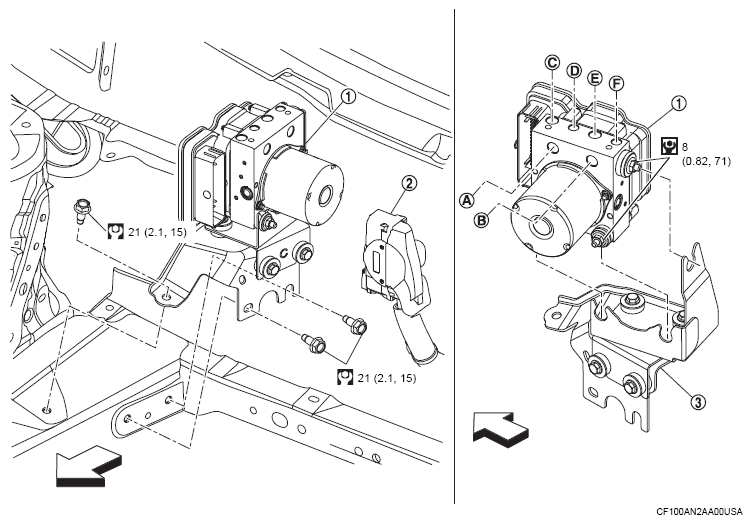

Fig 1: Removing/Installing ABS Actuator And Electric Unit (Control Unit) Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	ABS actuator and electric unit (control unit)
(2)	ABS actuator and electric unit (control unit) harness connector
(3)	Bracket
(A)	To master cylinder secondary side
(B)	To master cylinder primary side
(C)	To rear RH caliper
(D)	To front LH caliper
(E)	To front RH caliper
(F)	To rear LH caliper
	: Vehicle front
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
