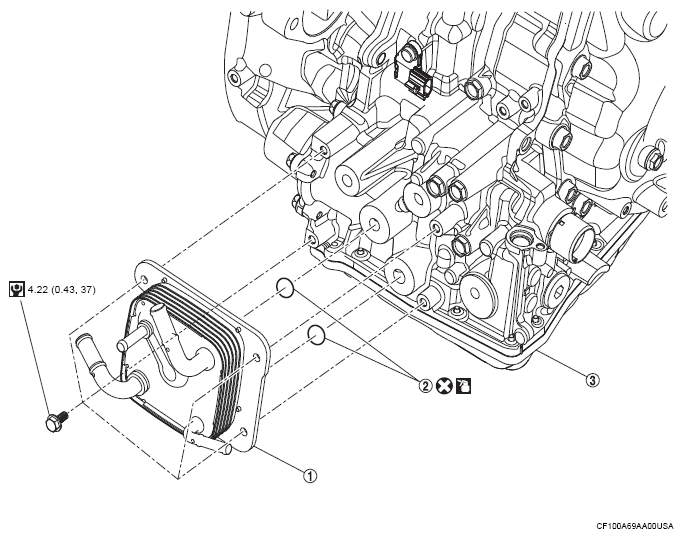

Exploded View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
| (1) |
CVT oil warmer |
| (2) |
O-ring |
| (3) |
Transaxle assembly |
 |
: N.m (kg-m, in-lb) |
 |
: Always replace after every disassembly. |
 |
: Apply CVT fluid. |
