Combination Switch Matrix
WARNING: This page is about a different car, the 2023 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

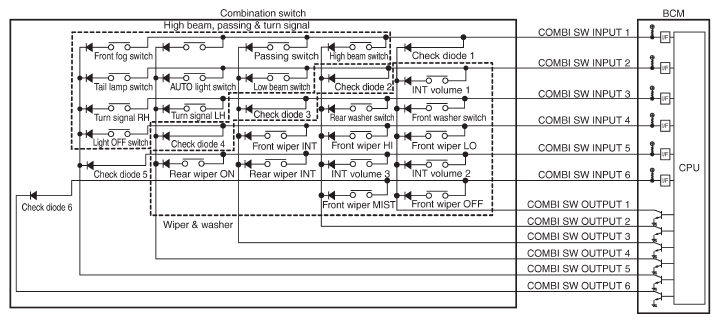

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST
| System | INPUT 1 | INPUT 2 | INPUT 3 | INPUT 4 | INPUT 5 | INPUT 6 |
|---|---|---|---|---|---|---|
| OUTPUT 1 | Check diode 1 | INT volume 1 | Front washer switch | Front wiper LO | INT volume 2 | Front wiper OFF |
| OUTPUT 2 | High beam switch | Check diode 2 | Rear washer switch | Front wiper HI | INT volume 3 | Front wiper MIST |
| OUTPUT 3 | Passing switch | Low beam switch | Check diode 3 | Front wiper INT | Rear wiper INT | - |
| OUTPUT 4 | - | AUTO light switch | Turn signal LH | Check diode 4 | Rear wiper ON | - |
| OUTPUT 5 | Front fog switch | Tail light switch | Turn signal RH | Light OFF switch | Check diode 5 | - |
| OUTPUT 6 | - | - | - | - | - | Check diode 6 |
NOTE:
AUTO light switch is not applicable. (For Canada models)
