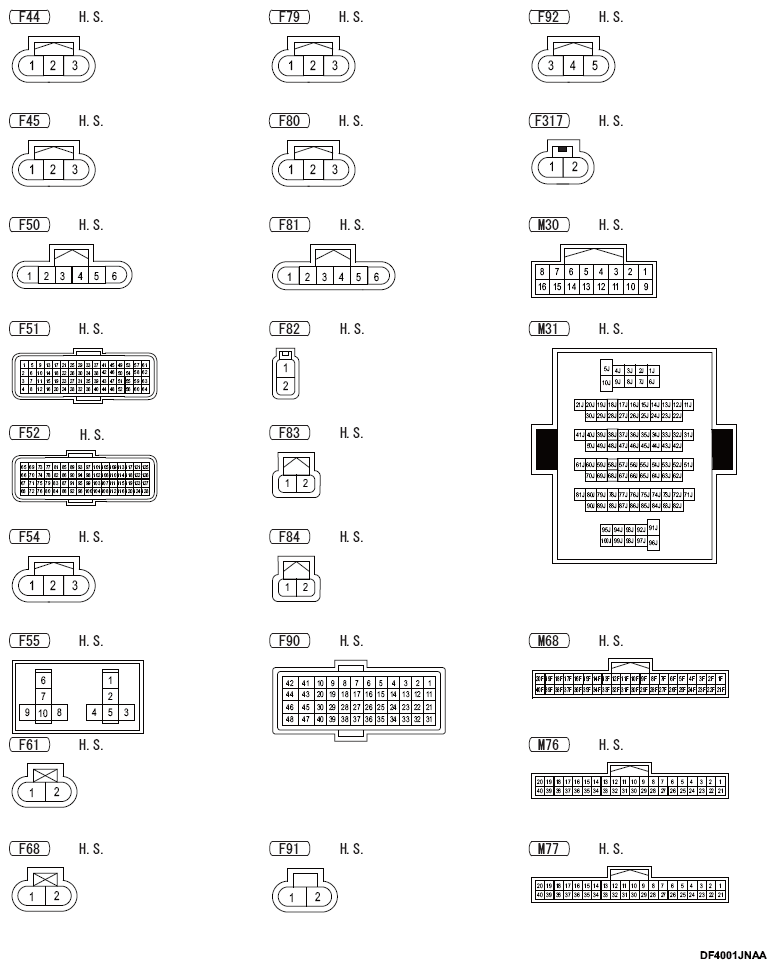

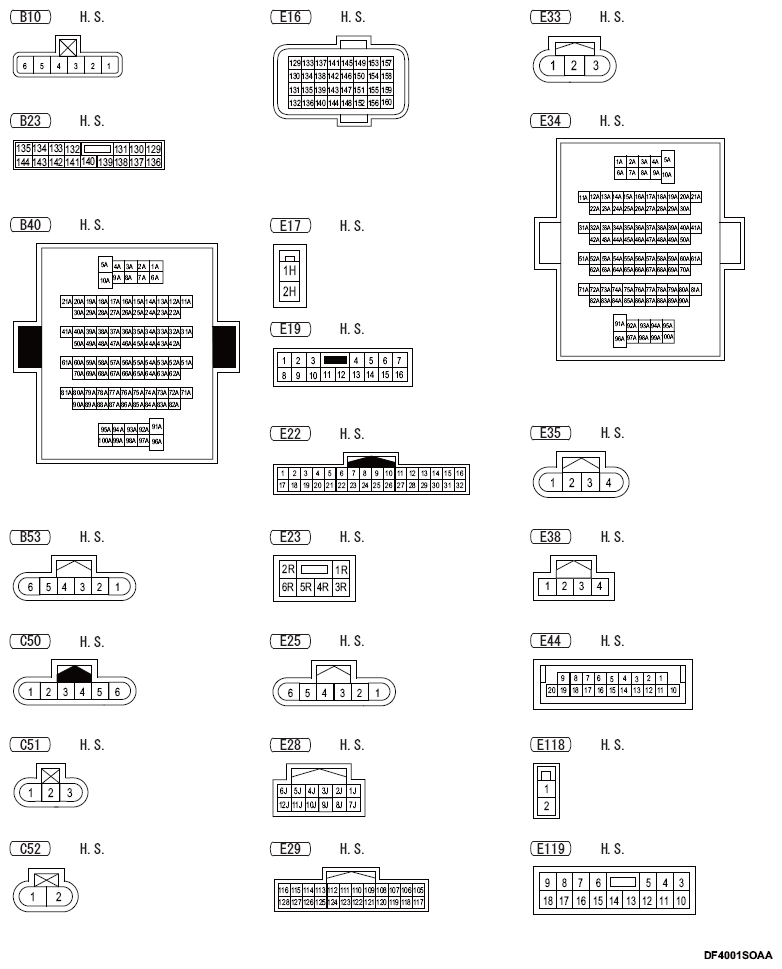

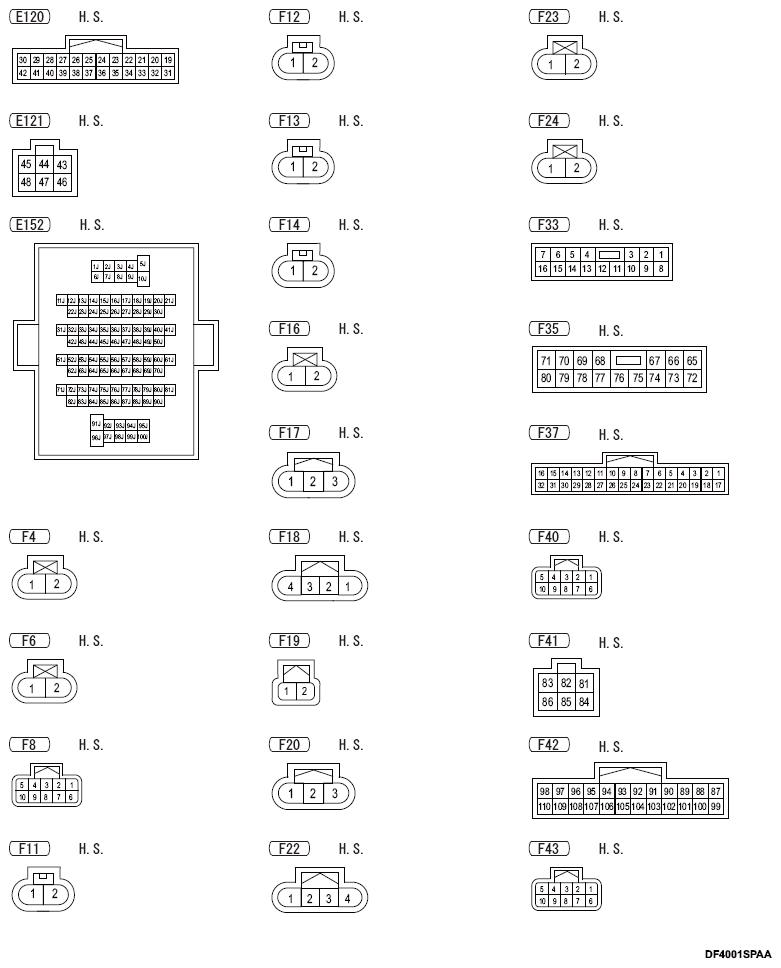

Engine Control System

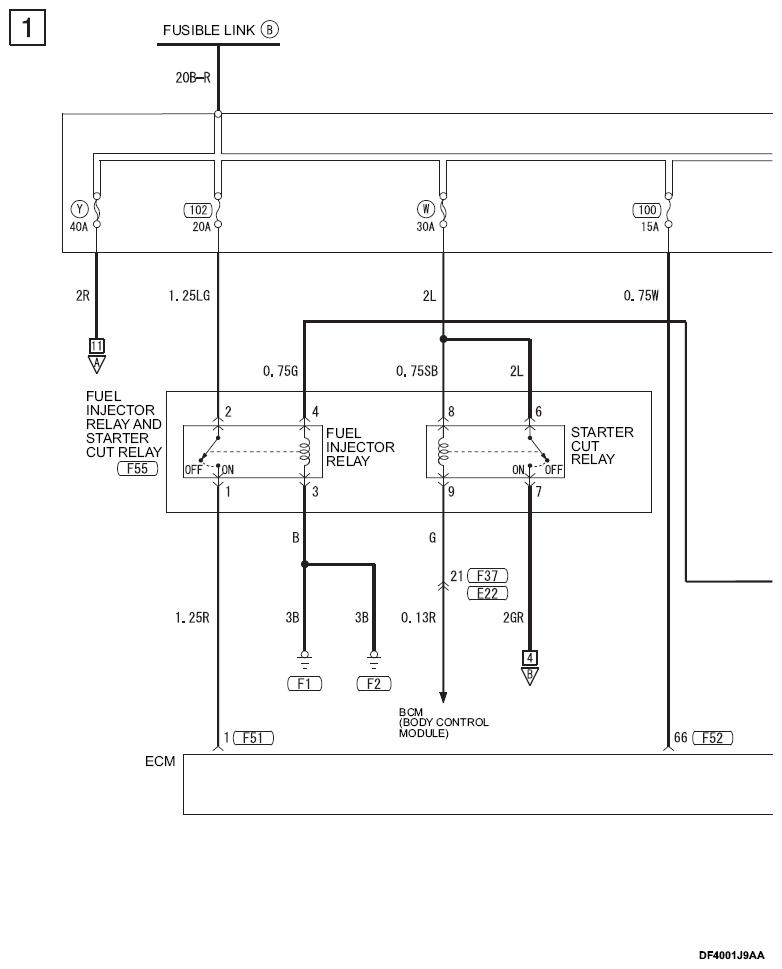

Fig 1: Engine Control System Circuit Diagram (1 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

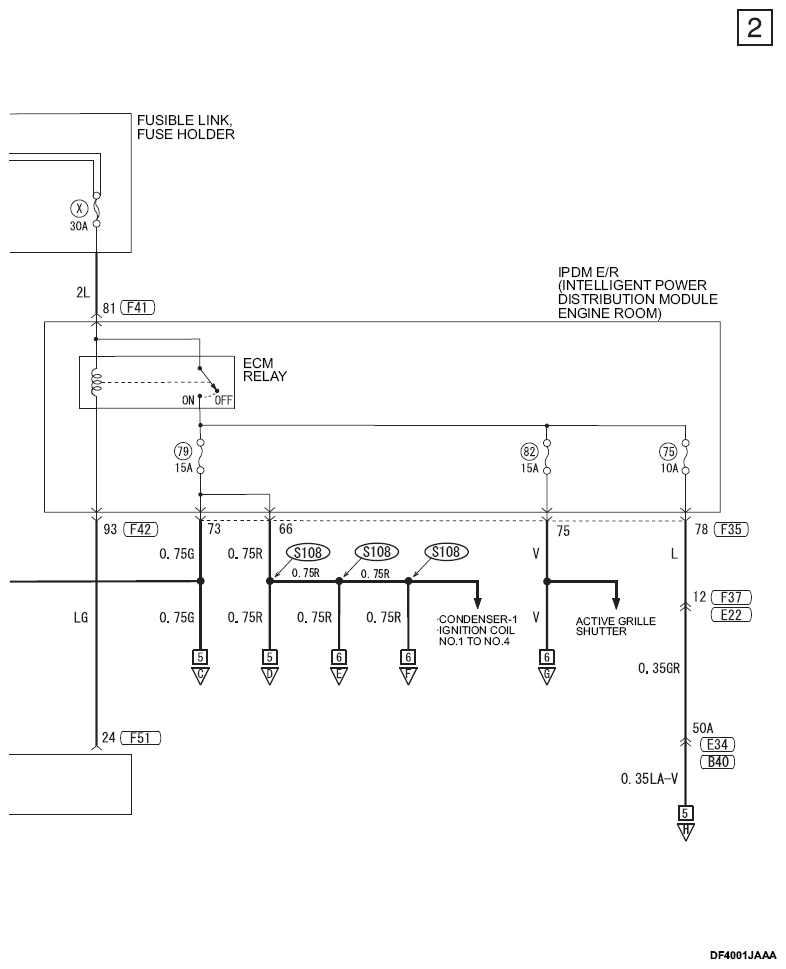

Fig 2: Engine Control System Circuit Diagram (2 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

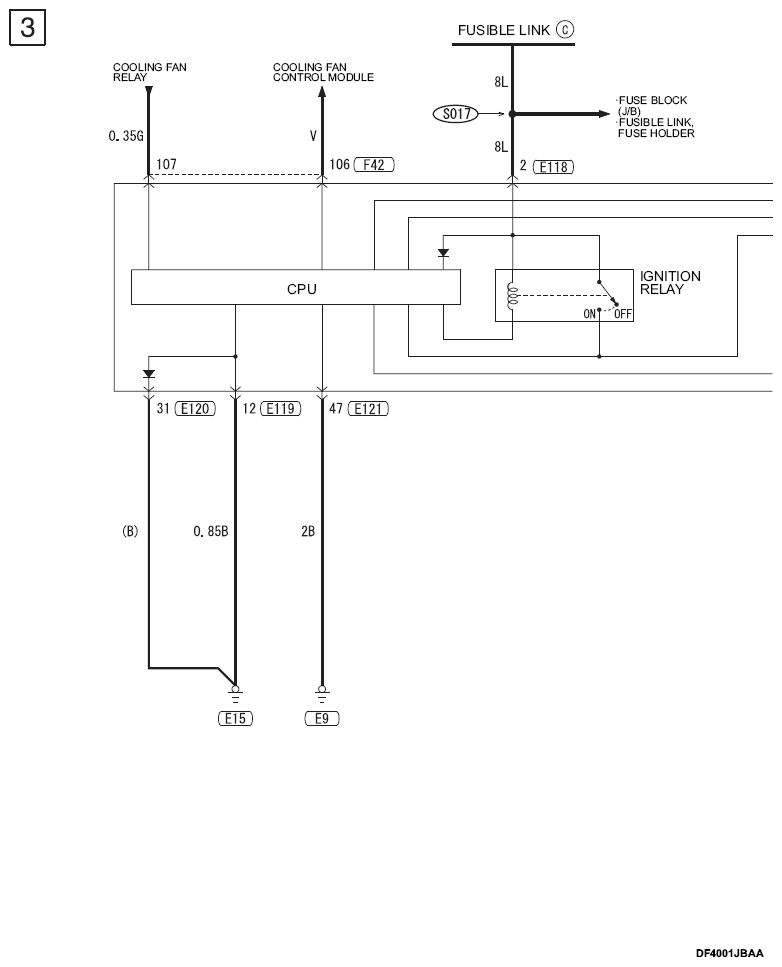

Fig 3: Engine Control System Circuit Diagram (3 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

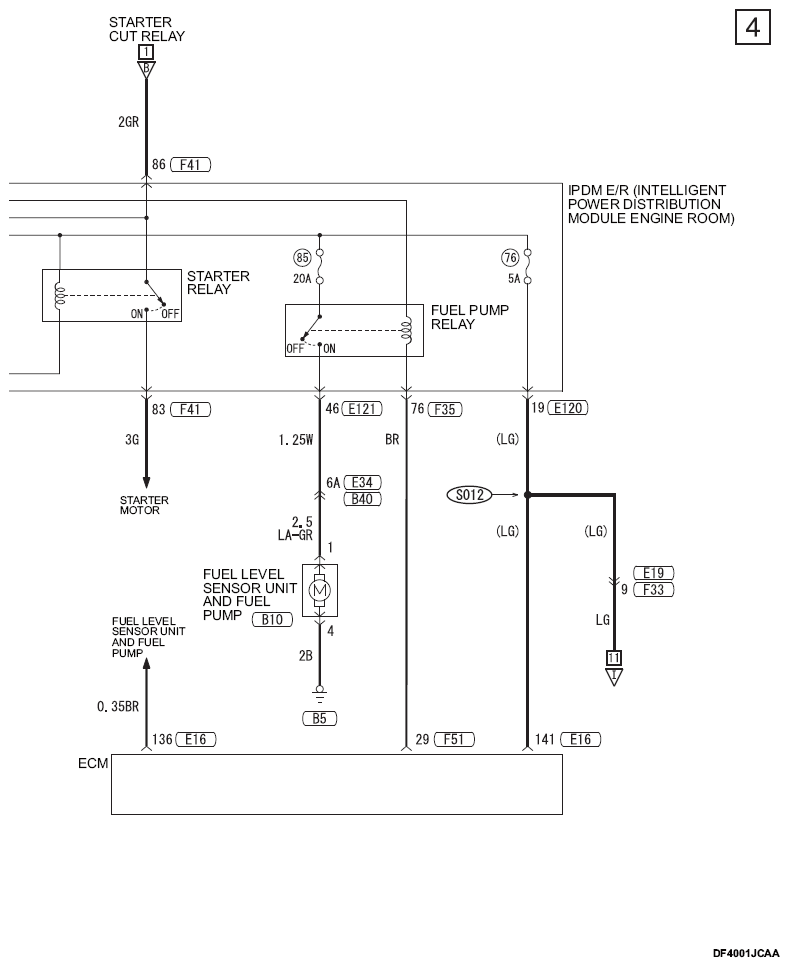

Fig 4: Engine Control System Circuit Diagram (4 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

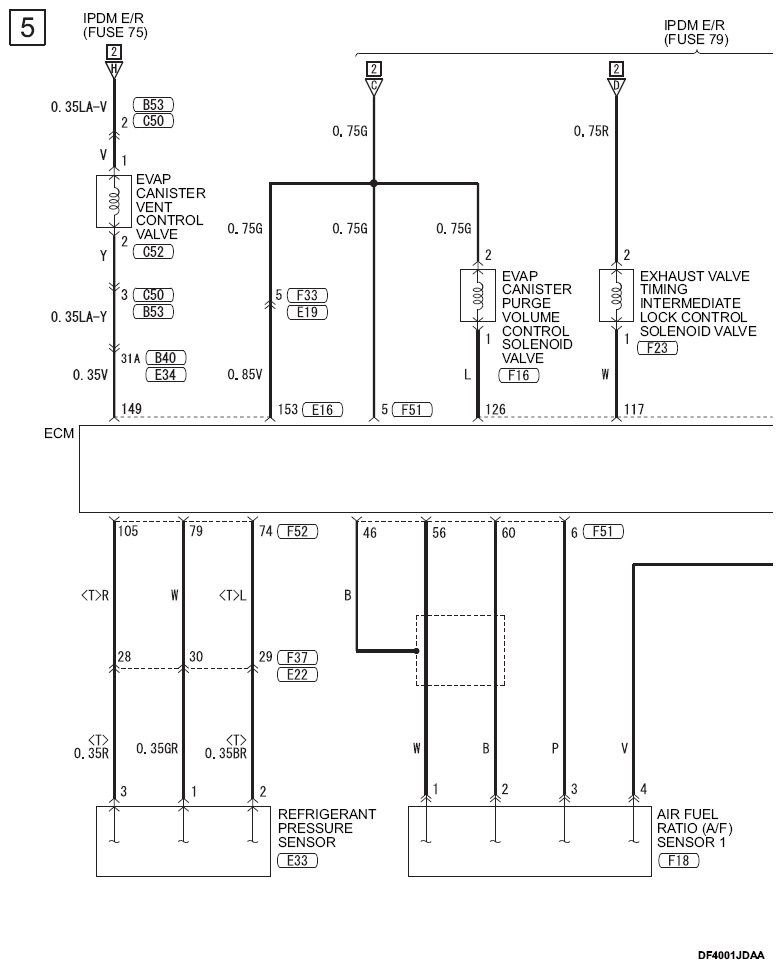

Fig 5: Engine Control System Circuit Diagram (5 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

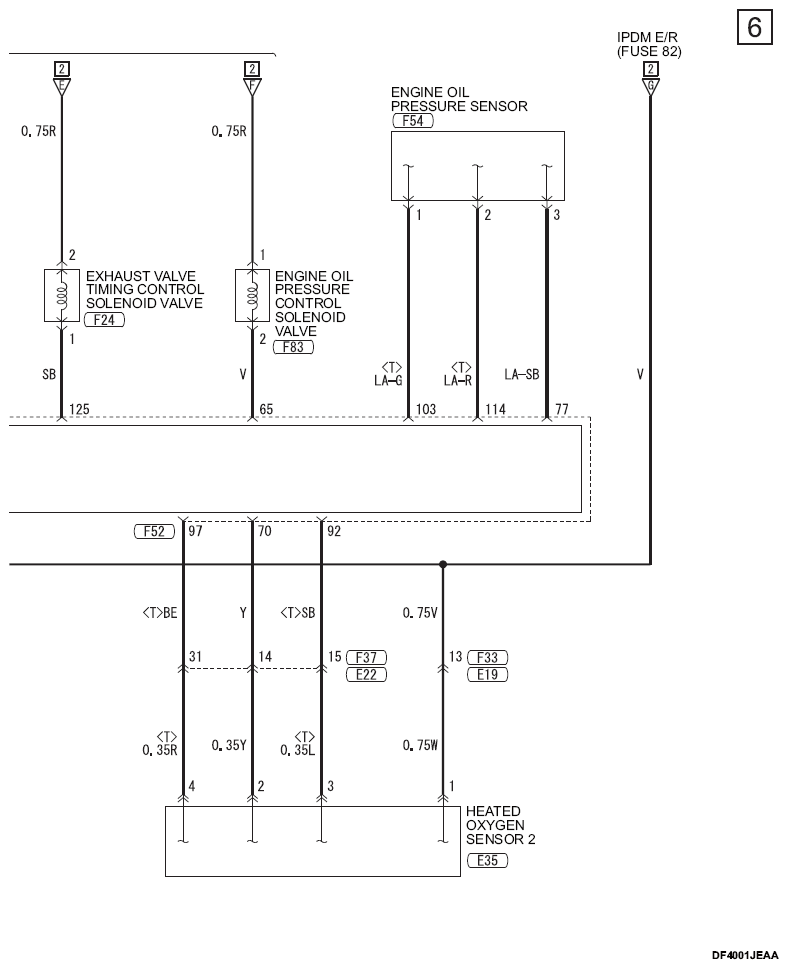

Fig 6: Engine Control System Circuit Diagram (6 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

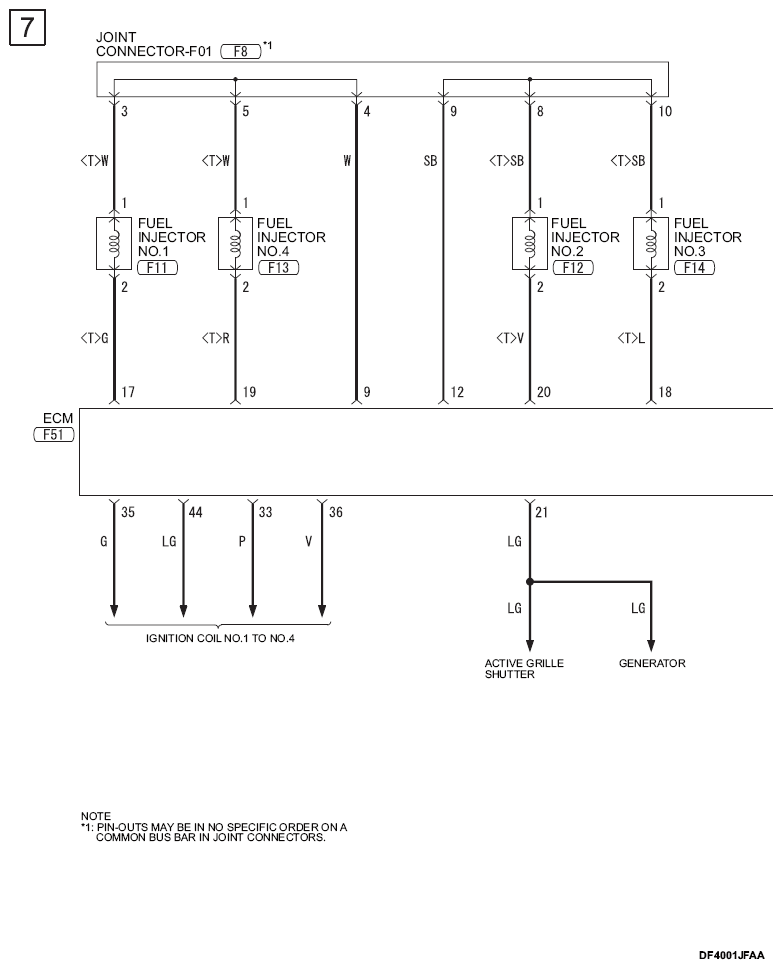

Fig 7: Engine Control System Circuit Diagram (7 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

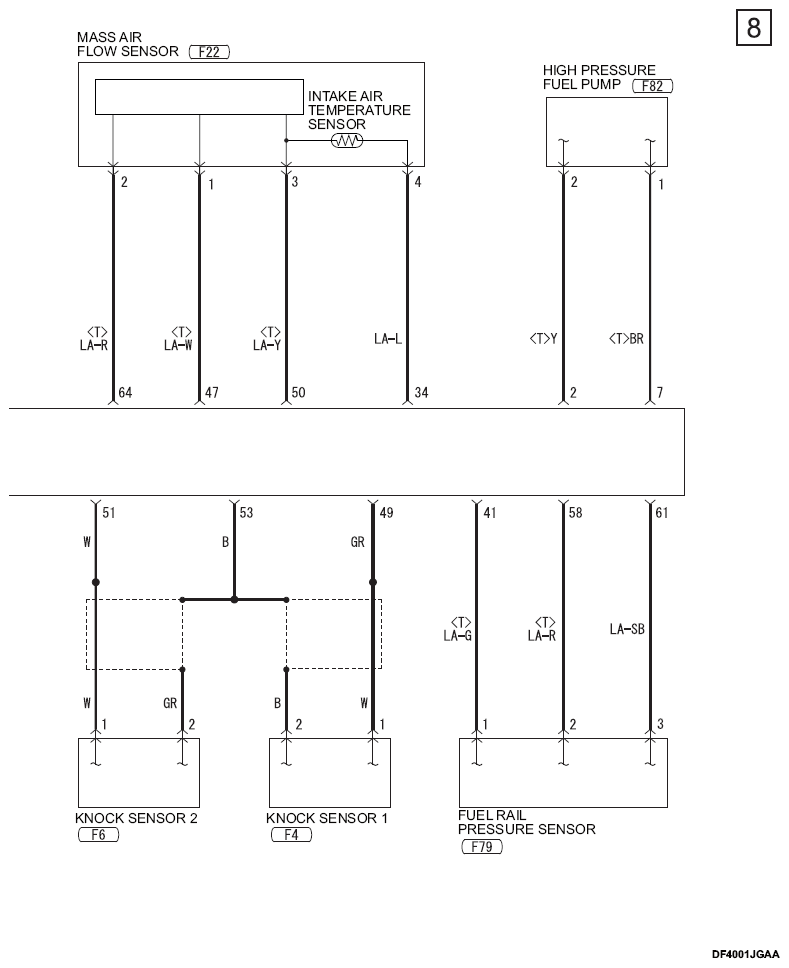

Fig 8: Engine Control System Circuit Diagram (8 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

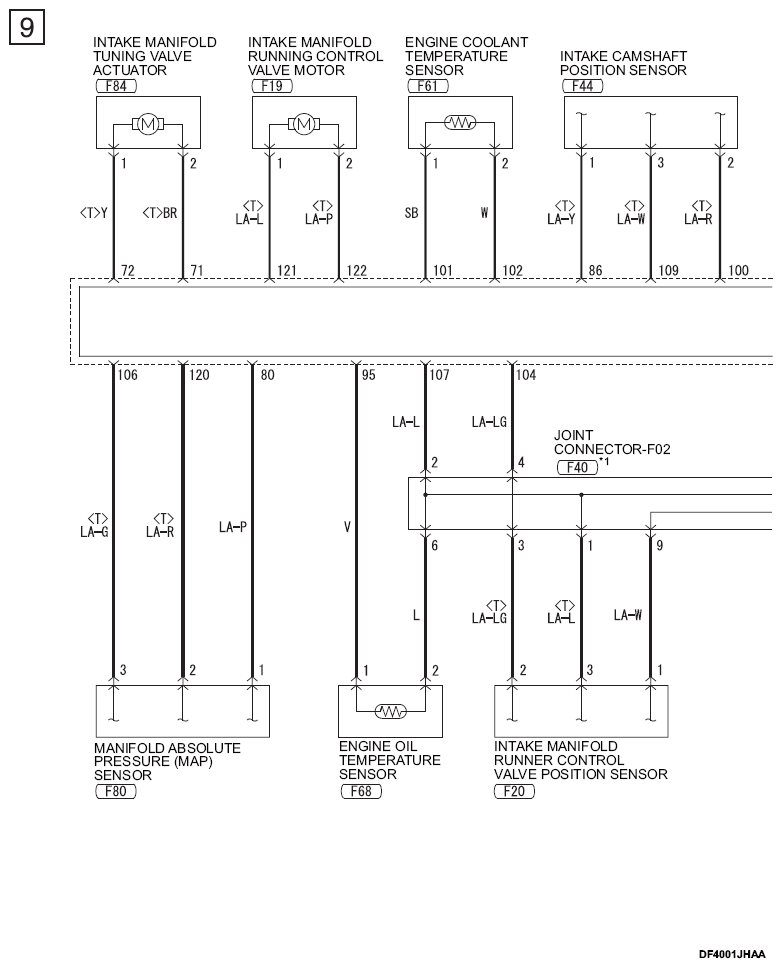

Fig 9: Engine Control System Circuit Diagram (9 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

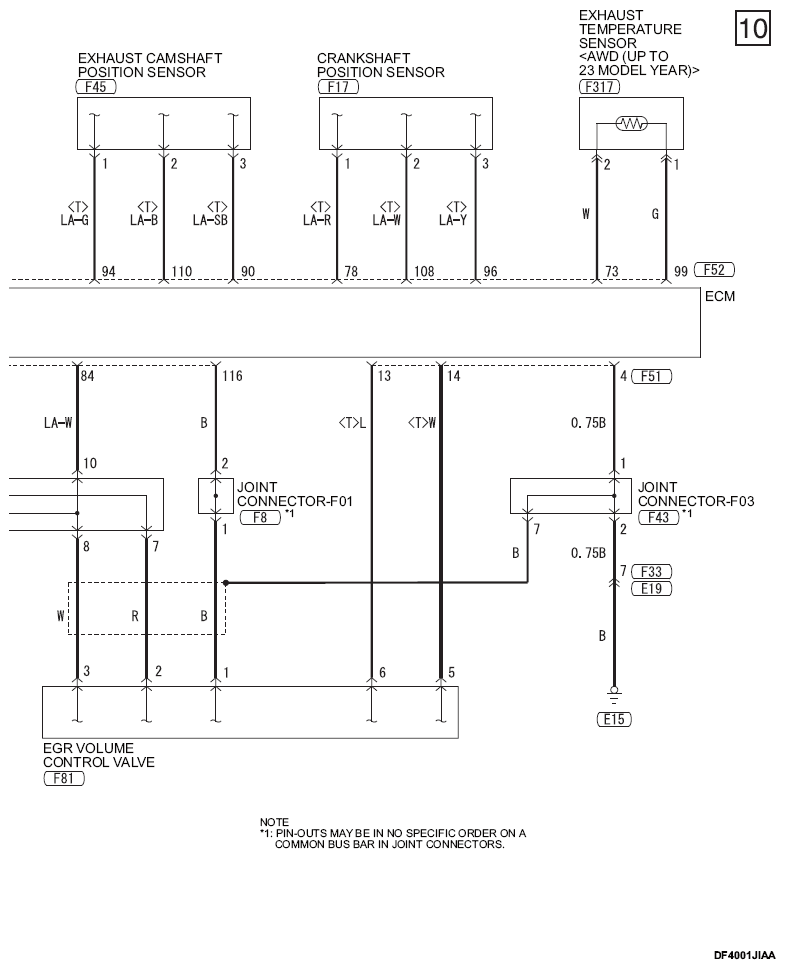

Fig 10: Engine Control System Circuit Diagram (10 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

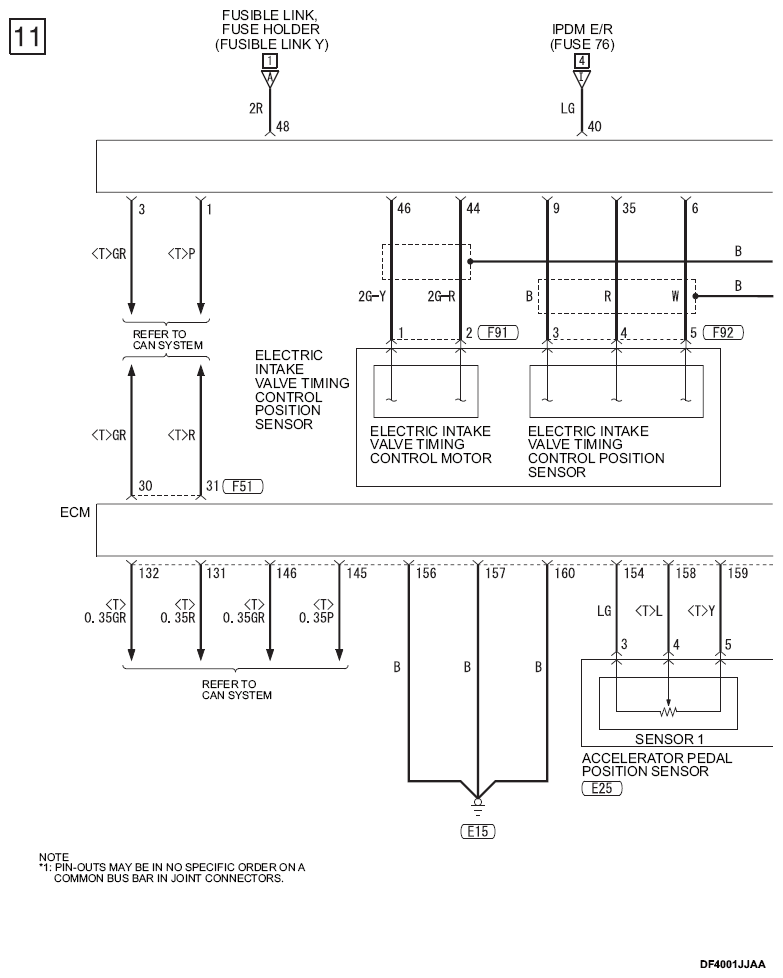

Fig 11: Engine Control System Circuit Diagram (11 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

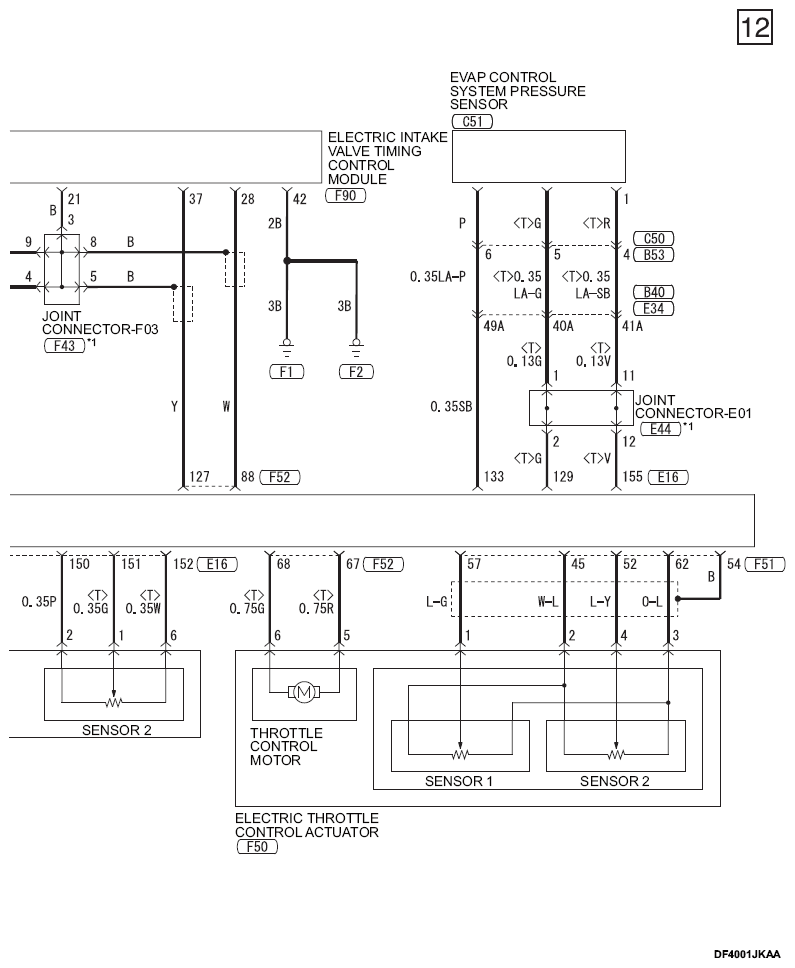

Fig 12: Engine Control System Circuit Diagram (12 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

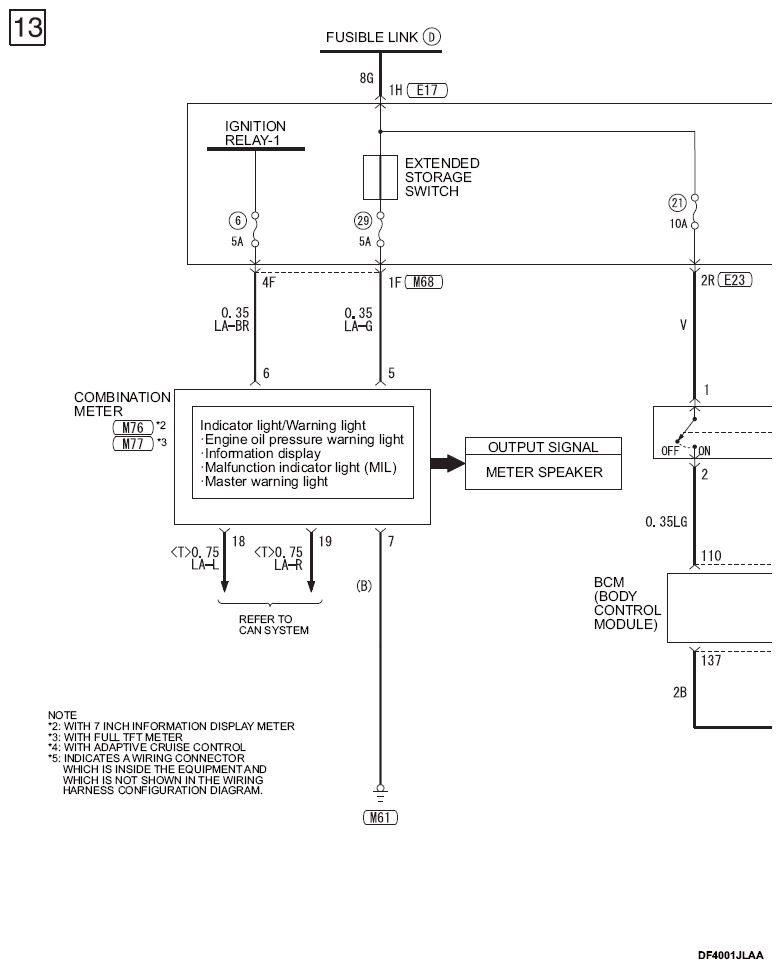

Fig 13: Engine Control System Circuit Diagram (13 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

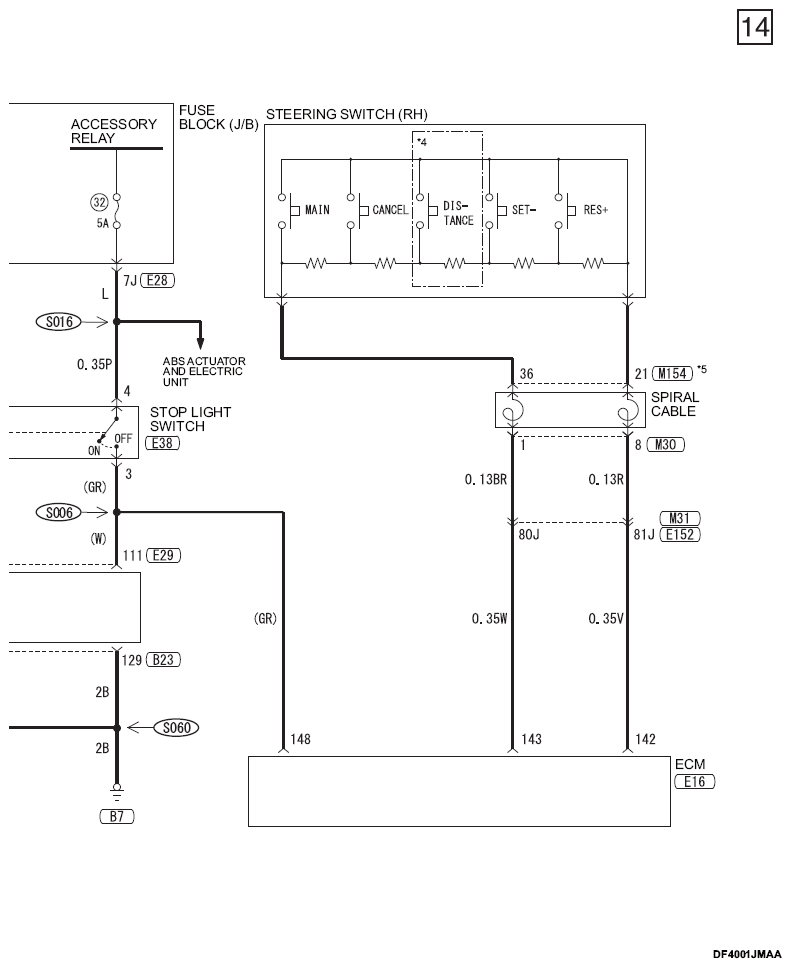

Fig 14: Engine Control System Circuit Diagram (14 Of 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
