Removal And Installation: Notes

Pre-removal Operation

Engine Room Under Cover Front A, B Removal (Refer to - Under Cover REMOVAL AND INSTALLATION ).
Engine Coolant Draining (Refer to - On-vehicle Service, ENGINE COOLANT CHANGE ).
Engine Oil Filter Removal (Refer to ENGINE OIL CHANGE ).

Post-installation Operation

Engine Oil Filter Installation (Refer to ENGINE OIL CHANGE ).
Engine Coolant Refilling (Refer to - On-vehicle Service, ENGINE COOLANT CHANGE ).
Engine Room Under Cover Front A, B Installation (Refer to - Under Cover REMOVAL AND INSTALLATION ).

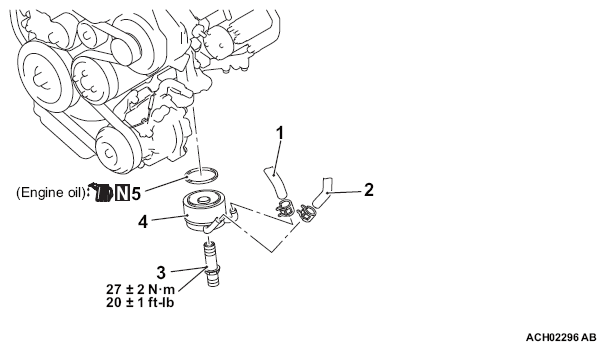

Fig 1: Removing/Installing Engine Oil Cooler Components Location With Torque Specification

G16565426

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

	Removal steps
	1. Water return hose connection
	2. Water feed hose connection
>>A<<	3. Engine oil cooler bolt
>>A<<	4. Engine oil cooler assembly
>>A<<	5. Engine oil cooler gasket
