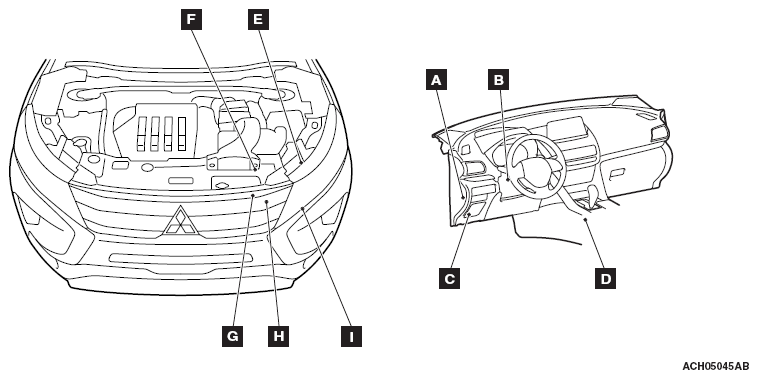

Control System Component Part Configuration Diagram

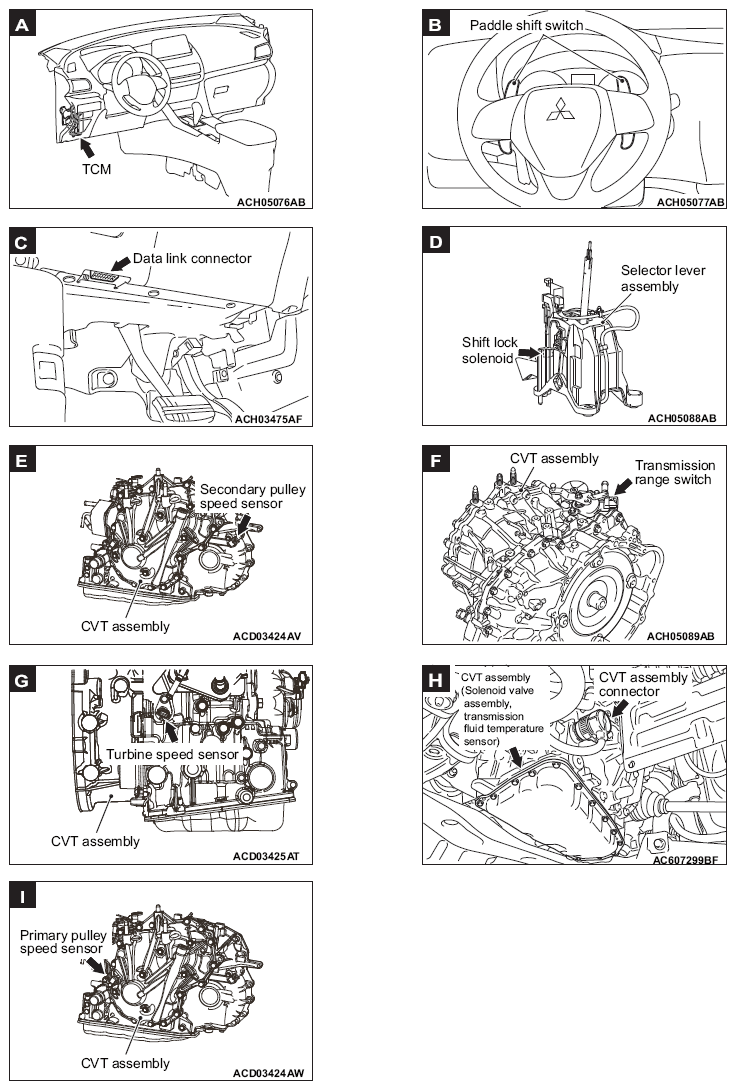

Name	Symbol
CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor)	H
TCM	A
Data link connector	C
Transmission range switch	F
Paddle shift switch	B
Primary pulley speed sensor	I
Secondary pulley speed sensor	E
Shift lock solenoid	D
Turbine speed sensor	G
-	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
