Removal And Installation: Notes
WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.
Post-installation Operation
- Liftgate alignment (Refer to ON-VEHICLE SERVICE )
<Up to 20 Model year>

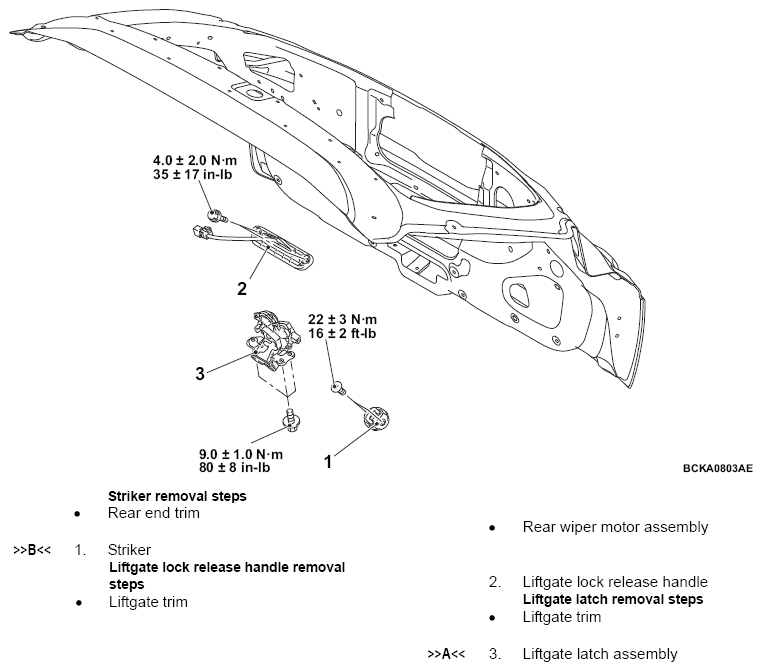

Fig 1: Removing/Installing Liftgate Handle And Latch Components Location With Torque Specification - Up To 20 Model Year

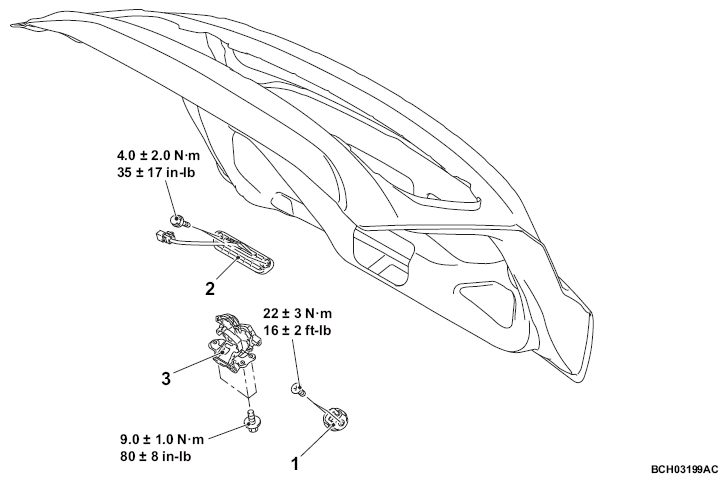

<From 22 Model year>
