 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

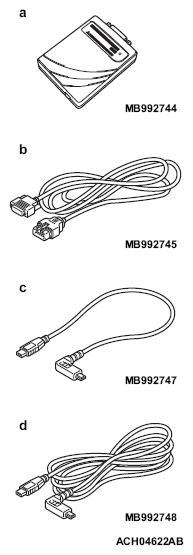

- MB992744
- MB992745
- MB992747
- MB992748
M.U.T.-IIISE
- Vehicle communication interface-Lite (V.C.I.-Lite)
- V.C.I.-Lite main harness A (for vehicles with CAN communication)
- V.C.I.-Lite USB cable short
- V.C.I.-Lite USB cable long
|
- |
DTC service data and actuator test check. |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
MB991223
- MB991219
- MB991220
- MB991221
- MB991222
Harness set
- Test harness
- LED harness
- LED harness adaptor
- Probe
|
General service tools |
Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
- Connector pin contact pressure inspection
- Power circuit inspection
- Power circuit inspection
- Commercial tester connection
|
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
MB992006 Extra fine probe |
- |
Making voltage and resistance measurement during troubleshooting |
