Combination Switch Matrix

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: AUTO light switch is not applicable. (For Canada models)

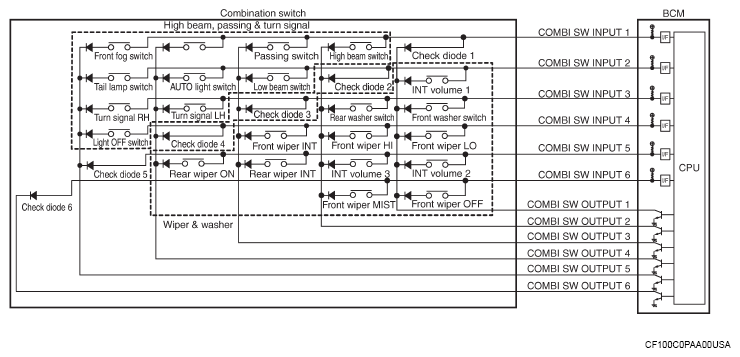

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5	INPUT 6
OUTPUT 1	Check diode 1	INT volume 1	Front washer switch	Front wiper LO	INT volume 2	Front wiper OFF
OUTPUT 2	High beam switch	Check diode 2	Rear washer switch	Front wiper HI	INT volume 3	Front wiper MIST
OUTPUT 3	Passing switch	Low beam switch	Check diode 3	Front wiper INT	Rear wiper INT	-
OUTPUT 4	-	AUTO light switch	Turn signal LH	Check diode 4	Rear wiper ON	-
OUTPUT 5	Front fog switch	Tail light switch	Turn signal RH	Light OFF switch	Check diode 5	-
OUTPUT 6	-	-	-	-	-	Check diode 6

NOTE: AUTO light switch is not applicable. (For Canada models)
