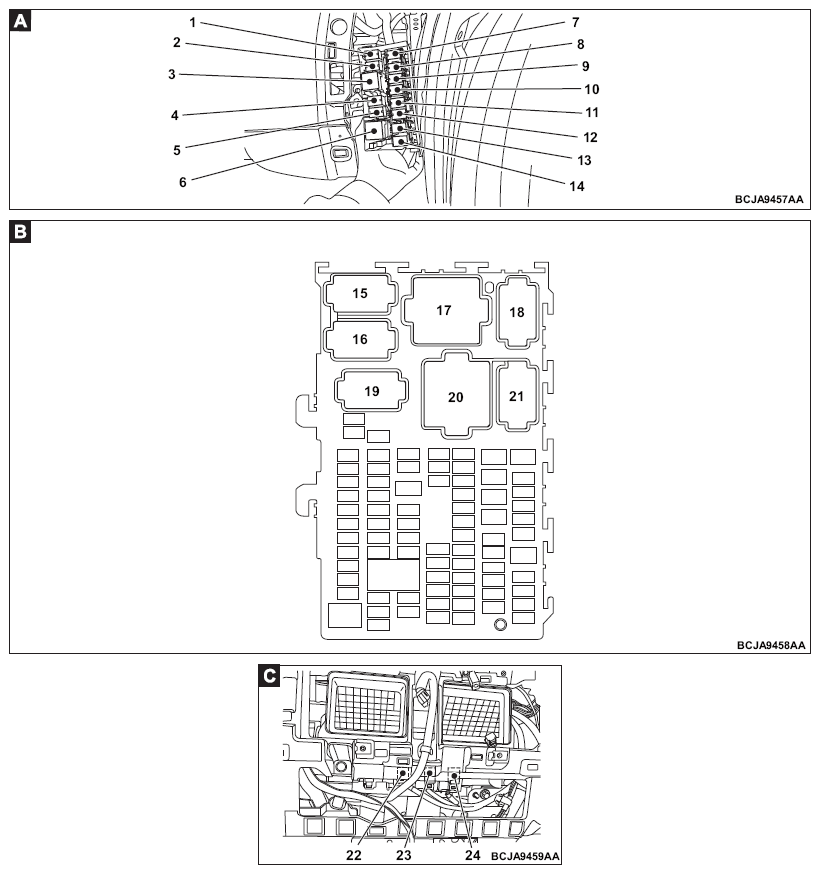

Code Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Part	No.	Part name
A	1	ST cut relay
	2	VINJ (INJ) relay
	3	PWM (RAD FAN) relay
	4	WIPER DEICER relay <Vehicles with wiper deicer>
	5	H/L WASHER relay <AWD>
	6	OFF LOAD 2 ION 3 (SEAT HEATER) relay
	7	FR WASHER MTR relay
	8	RR WASHER MTR relay
	9	SR MTR (A/T) relay
	10	SR MTR (A/T) relay
	11	REV LAMP relay
	12	PTC 1 relay <Except vehicles for Israel>
	13	PTC 2 relay <Except vehicles for Israel>
	14	PTC 3 relay <Except vehicles for Israel>
B	15	Dome light relay
	16	IGN relay
	17	IGN 2 relay
	18	IGN 2 relay
	19	R. DEF relay
	20	AUTO ACC relay
	21	P/W LIFT relay
C	22	HEATER STRG relay
	23	HORN relay
	24	ANTI THEFT relay
