Removal And Installation

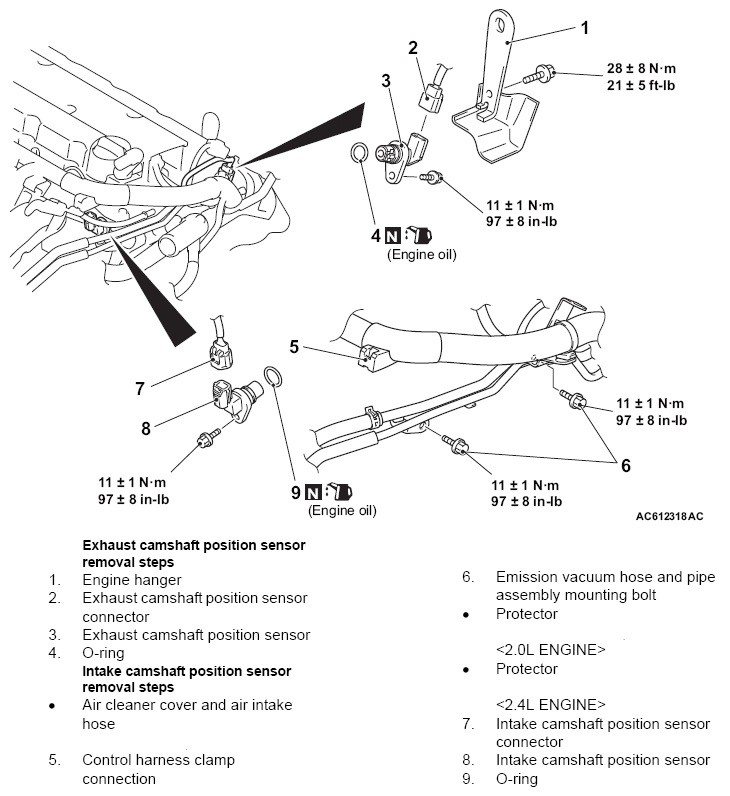

Fig 1: Removing/Installing Camshaft Position Sensor Components Location With Torque Specification
G14621190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
