Removal And Installation

Pre-removal and Post-installation Operation

Rear Wheelhouse Splash Shield (LH) Removal and Installation (Refer to , Splash Shield INSTALLATION SERVICE POINT ).

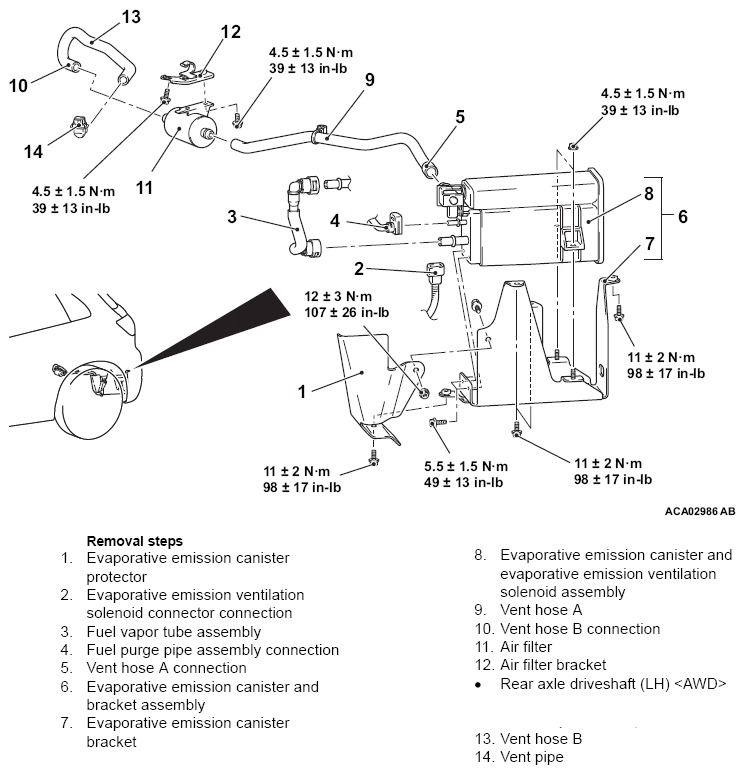

Fig 1: Removing/Installing Evaporative Emission Canister And Fuel Tank Pressure Relief Valve Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
