ADAS 2 Control/Multi Around Monitor (TT-284-54-001)
Publication date: 2025-01-01Reference number: TT-284-54-001
ADAS 2 CONTROL/MULTI AROUND MONITOR
TECHNICAL INFORMATION TIPS
Reference Number(s): TT-284-54-001, Date of Issue:
January 01, 2025
| MITSUBISHI: | 2022-2025 Outlander |
| GROUP: | 54 |
AFFECTED VEHICLES
2022-2025 Outlander
GROUP: 54
MMNA is aware of situations where the ADAS 2 Control Unit was misidentified as the Multi Around Monitor (MAS) Control Unit.

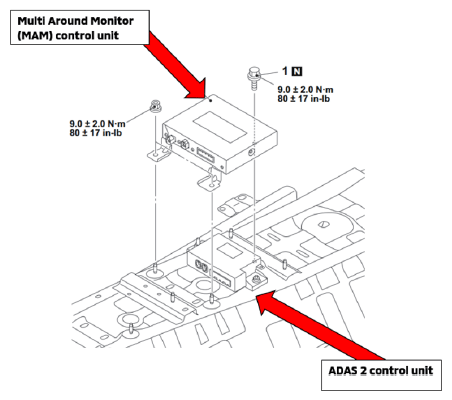

The graphic below shows the location and identifies both control units in question. Be sure to refer to the graphic to ensure the correct control unit is ordered when replacing either of the units.
