Removal and Installation: Notes

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not remove front camera unit bracket and front camera cover from windshield glass.
  • Front camera unit bracket and front camera cover must be replaced together with windshield glass as an assembly.
  • When replacing front camera unit, perform "ADDITIONAL SERVICE WHEN REPLACING FRONT CAMERA UNIT." Refer to WORK PROCEDURE .

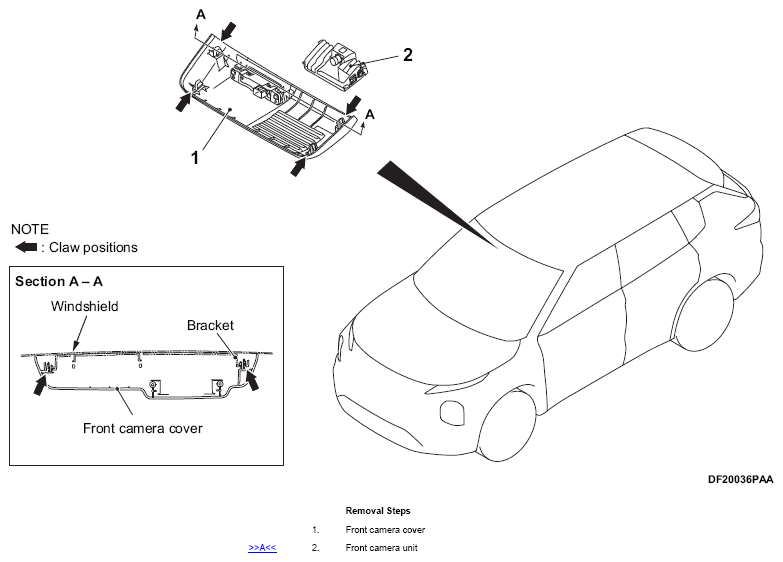

G16052891Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Removal Steps
  1. Front camera cover
>>A<< 2. Front camera unit
