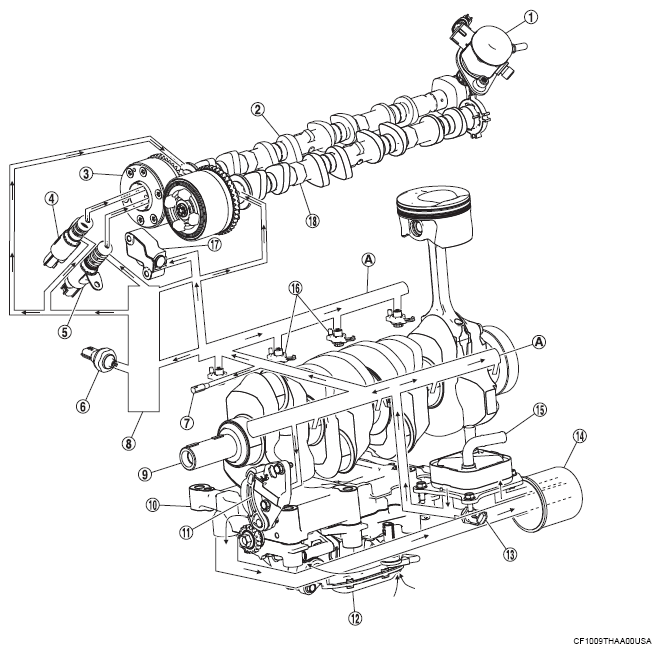

Engine Lubrication System
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| (1) | High pressure fuel pump |
| (2) | Camshaft (EXH) |
| (3) | Camshaft sprocket (EXH) |
| (4) | Exhaust valve timing control solenoid valve |
| (5) | Exhaust valve timing intermediate lock control solenoid valve |
| (6) | Engine oil pressure sensor |
| (7) | Timing chain oil jet |
| (8) | Front cover |
| (9) | Crankshaft |
| (10) | Balancer unit |
| (11) | Balancer unit timing chain tensioner |
| (12) | Oil strainer |
| (13) | Engine oil temperature sensor |
| (14) | Oil filter |
| (15) | Oil cooler |
| (16) | Oil jet |
| (17) | Chain tensioner |
| (18) | Camshaft (INT) |
| (A) | Main gallery |
