Exploded View: Removal

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

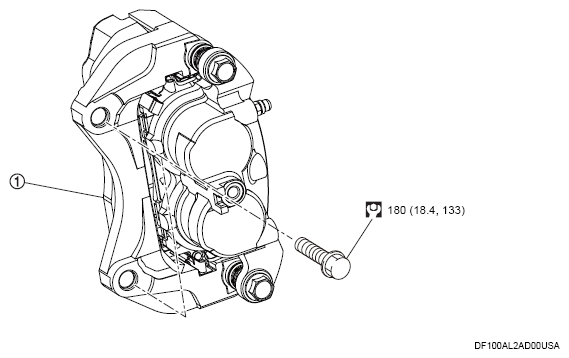

Fig 1: Removing/Installing Brake Caliper Assembly Components Location With Torque Specification
G16045770Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Brake caliper assembly
: N.m (kg-m, ft-lb)
