Ground - Engine Control Harness

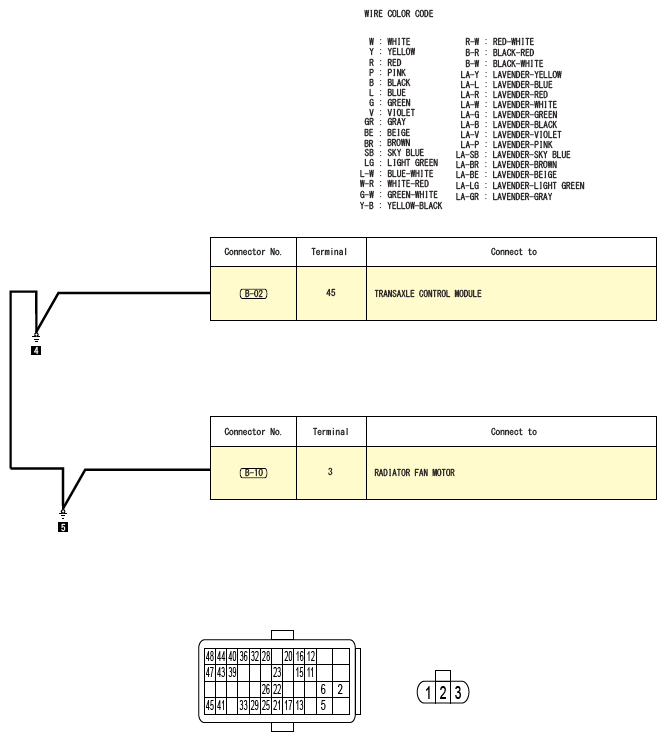

Fig 1: Ground Distribution Circuit Diagram - Engine Control Harness
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS
- connector number substitution list)
