Removal And Installation: Notes

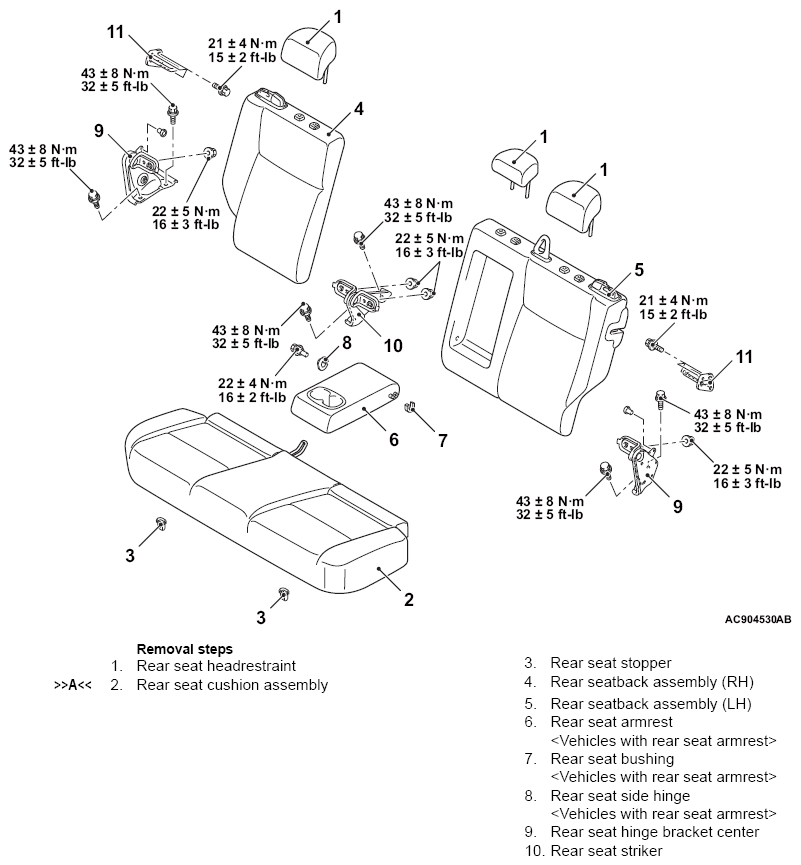

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specification
G14214331Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
