Immobilizer System

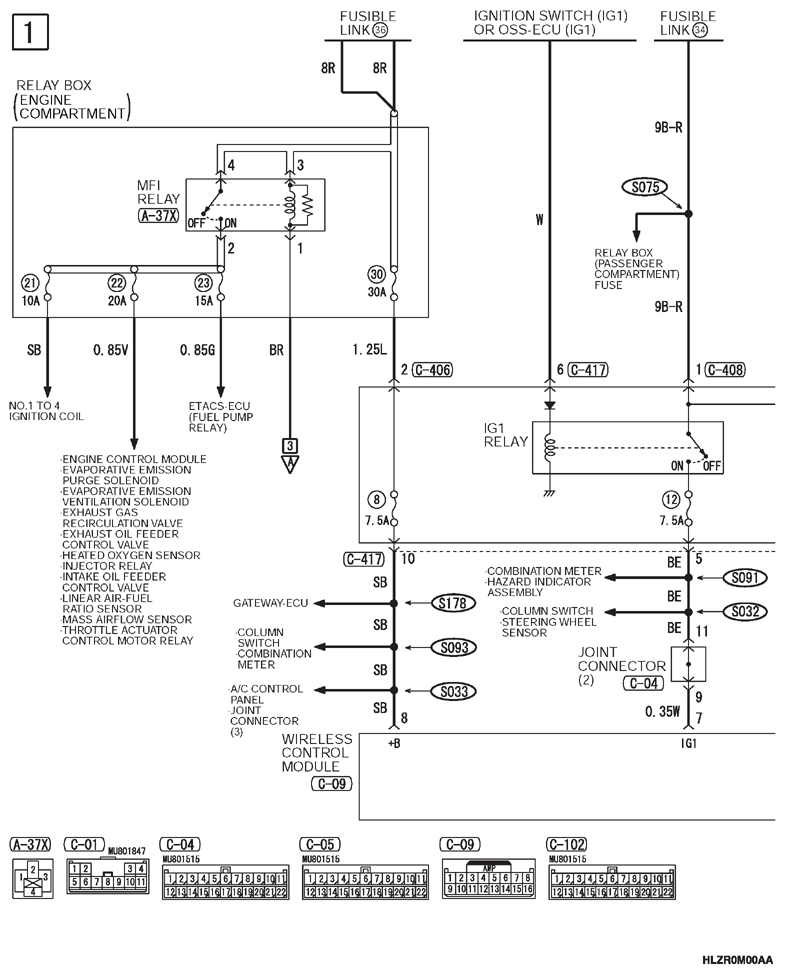

G13346303Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

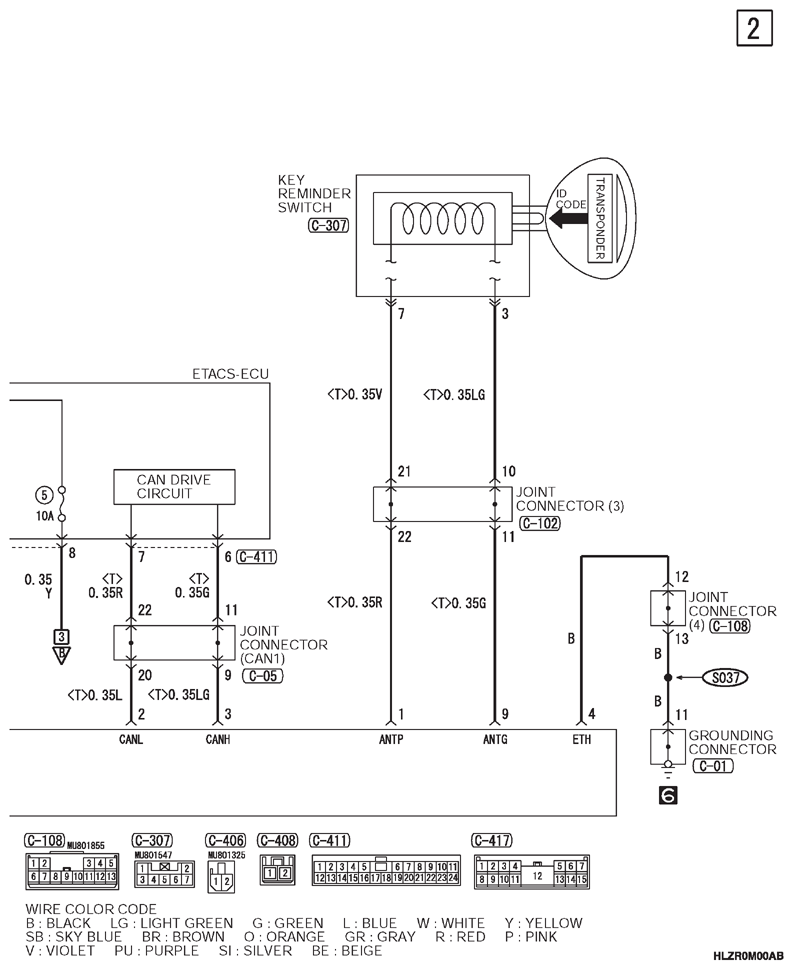

G13346304Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

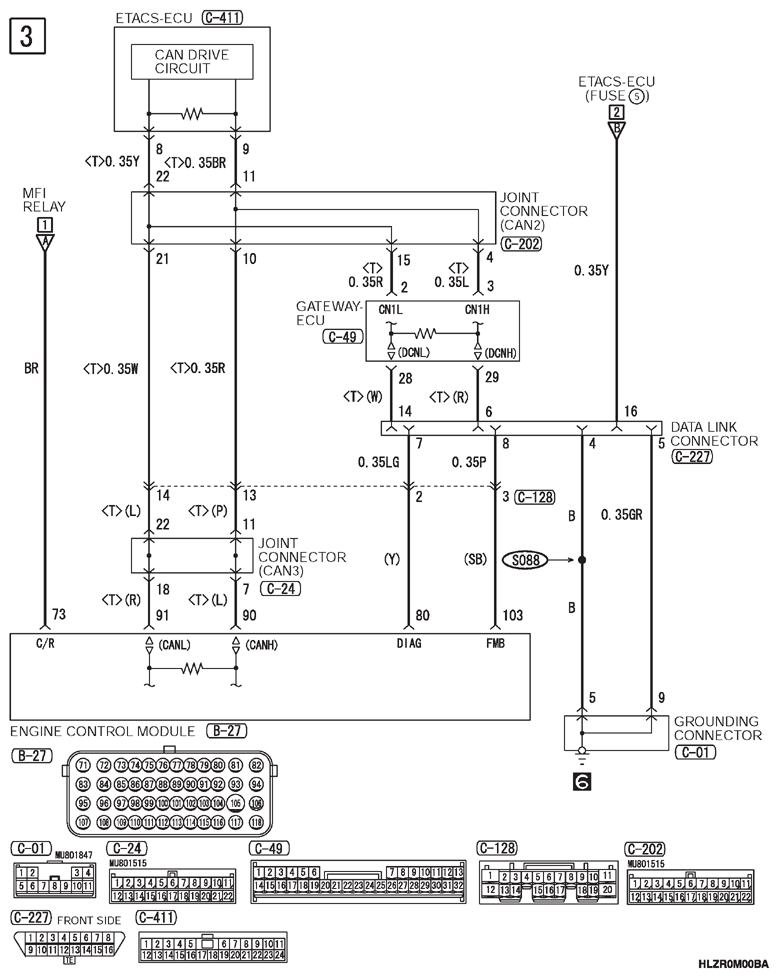

G13346305Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
