Removal And Installation

WARNING: Before removing the driver's air bag module assembly, always refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

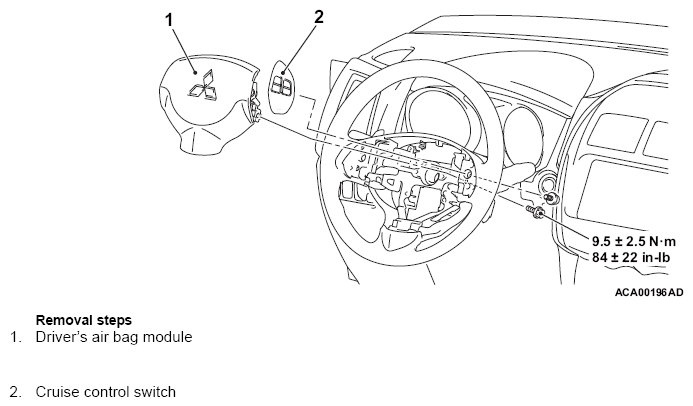

Fig 1: Removing/Installing Cruise Control Switch Components Location With Torque Specification
G14212879Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
