Disassembly And Reassembly

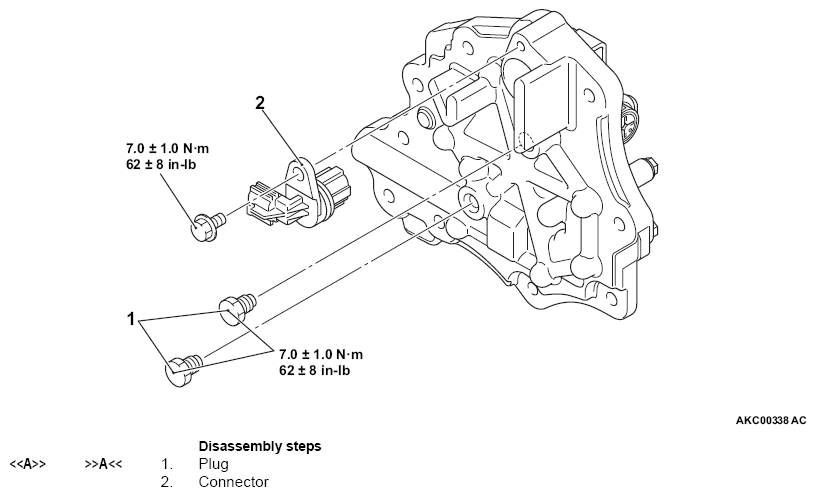

Fig 1: Disassembling/Assembling Valve Body Components With Torque Specifications
G13782839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
