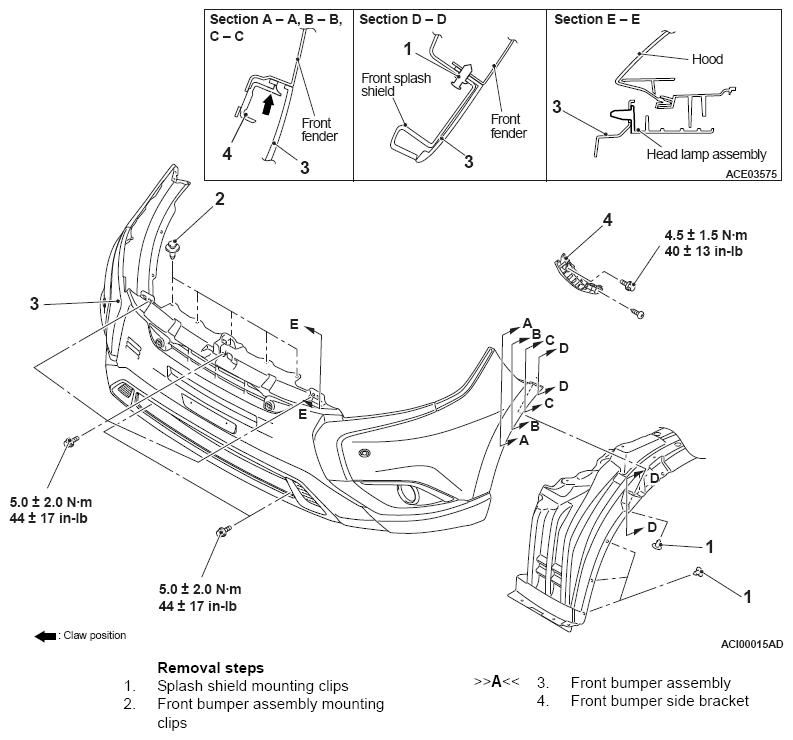

Removal And Installation: Notes
WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
Pre-removal Operation
- Radiator Grill Removal (Refer to ADHESIVE
.)
- Engine Room Under Cover Front A Removal (Refer to REMOVAL AND INSTALLATION
.)
- Front Wiring Harness and Front Bumper Wiring Harness Combination
|
Post-installation Operation
- Front Wring Harness and Front Bumper Wring Harness Combination
- Engine Room Under Cover Front A Installation (Refer to REMOVAL AND INSTALLATION
.)
- Radiator Grill Installation (Refer to ADHESIVE
.)
- Front Fog Light Aiming Adjustment (Refer to
Fog Light - On-vehicle Service ON-VEHICLE SERVICE
).
|
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
