Removal And Installation: Notes

Pre-removal and Post-installation Operation
  • Removal and Installation of Front Pillar Trim, Upper Center Pillar Trim, Rear Pillar Upper Trim (Refer to TRIMS ).
  • Removal and Installation of Dome Light Assembly (Refer to DOME LIGHT ).
  • Removal and Installation of Passenger's Air Bag Cut OFF Indicator Light Assembly (Refer to PASSENGER'S AIR BAG ON/OFF INDICATOR LIGHT ).

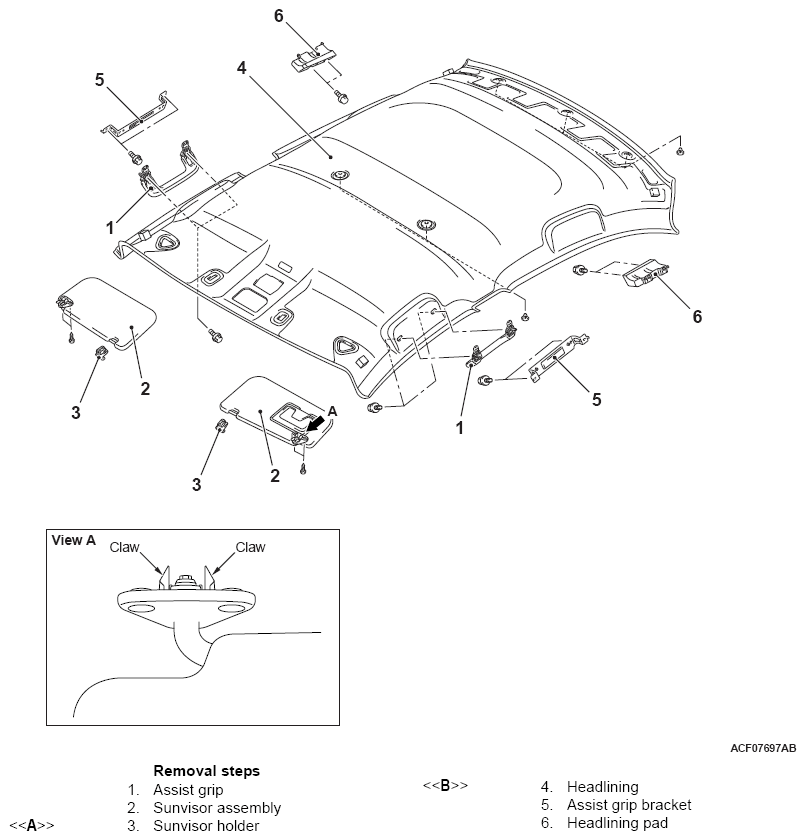

G13255587
