Removal And Installation: Notes

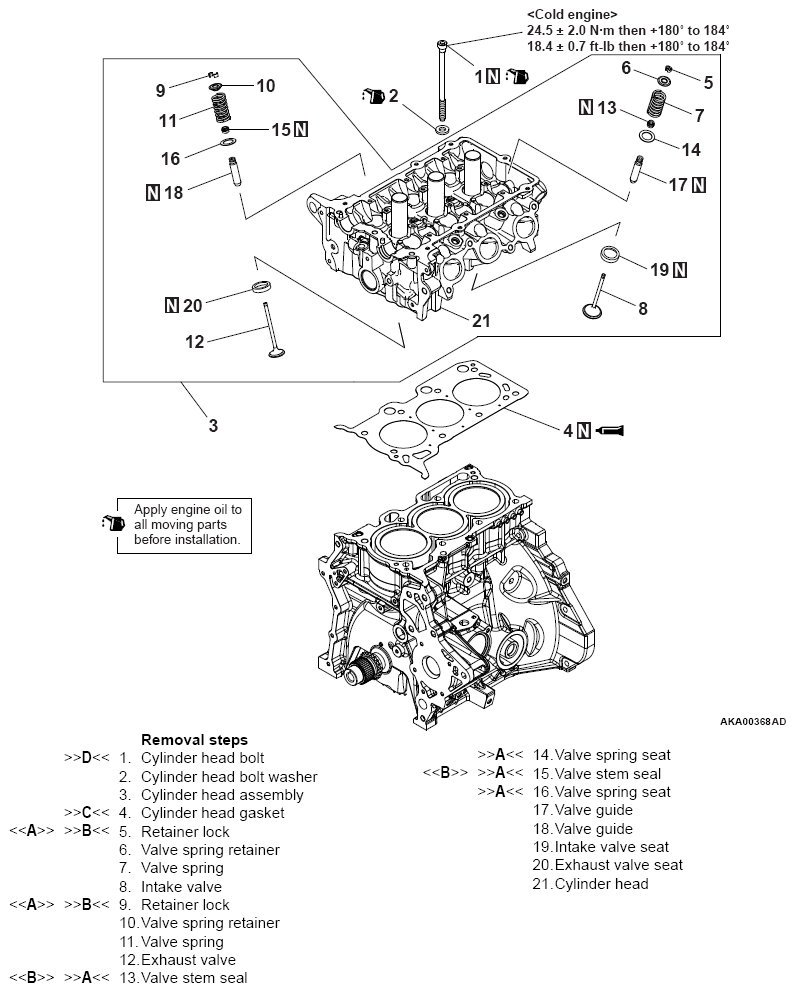

Fig 1: Removing/Installing Cylinder Head And Valves Components With Torque Specification
G13254135Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
