Removal And Installation: Notes

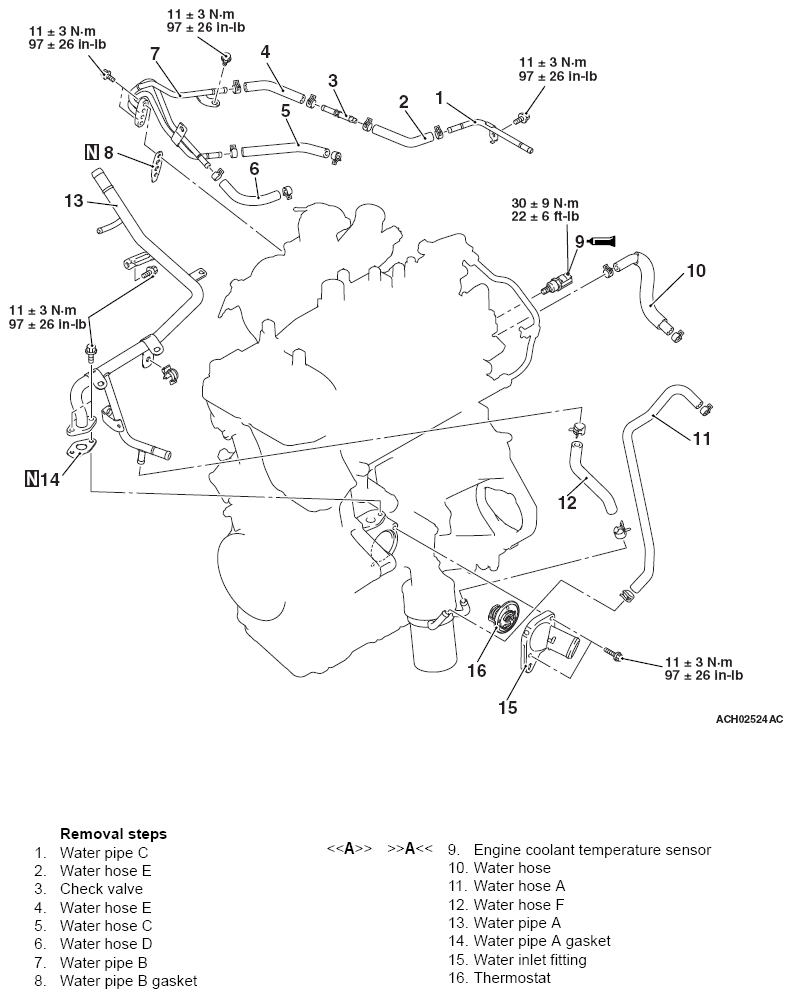

Fig 1: Removing/Installing Water Hose And Pipe Components Location With Torque Specification
G13322629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
