Front Axle Driveshaft Assembly: Notes

CAUTION: As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.

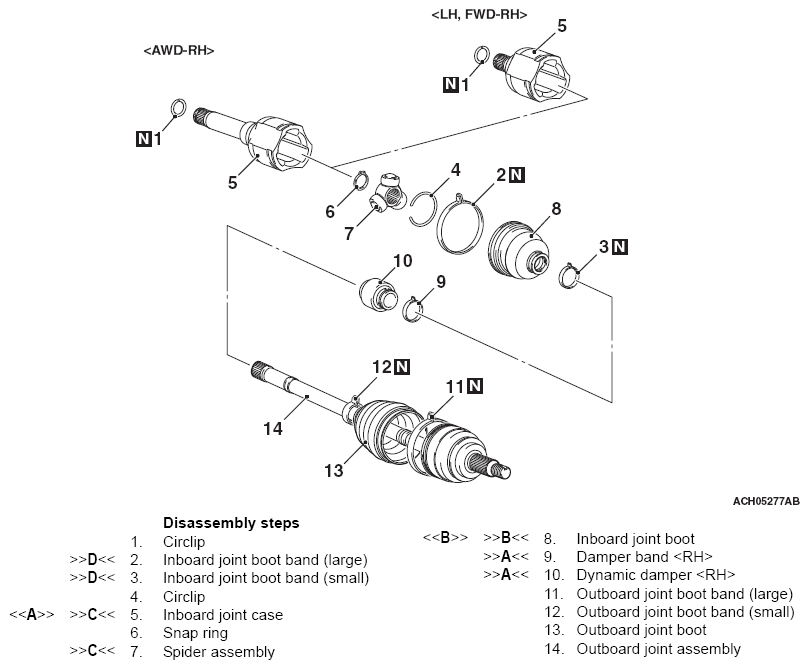

G13323751Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
