Configuration Diagrams: Miscellaneous: Notes

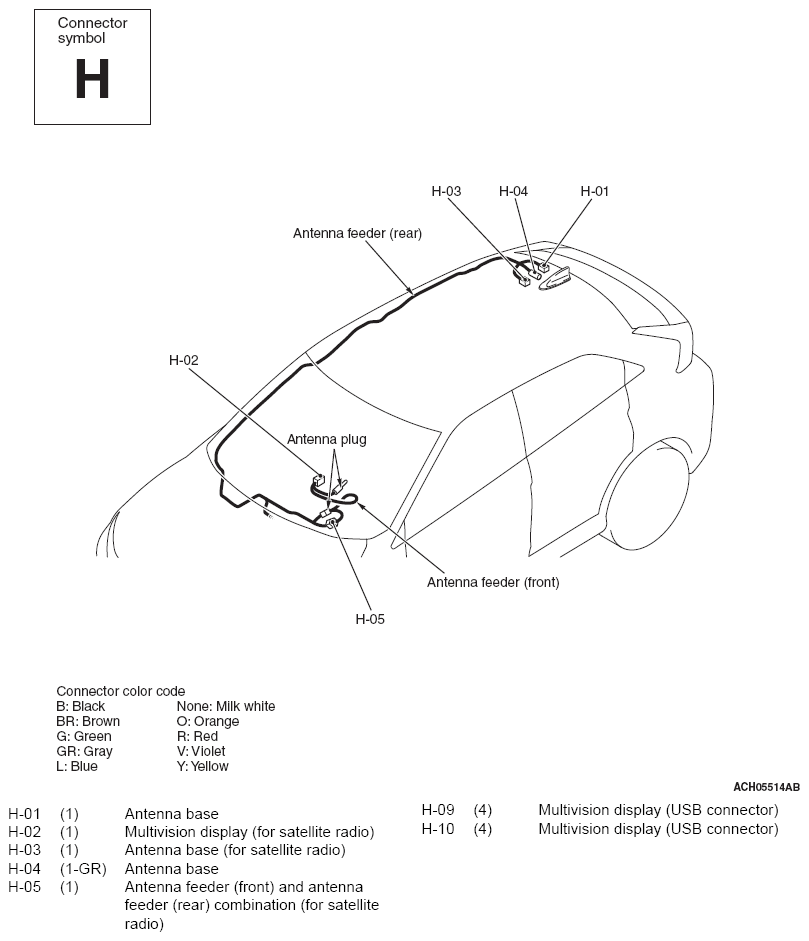

G13325683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

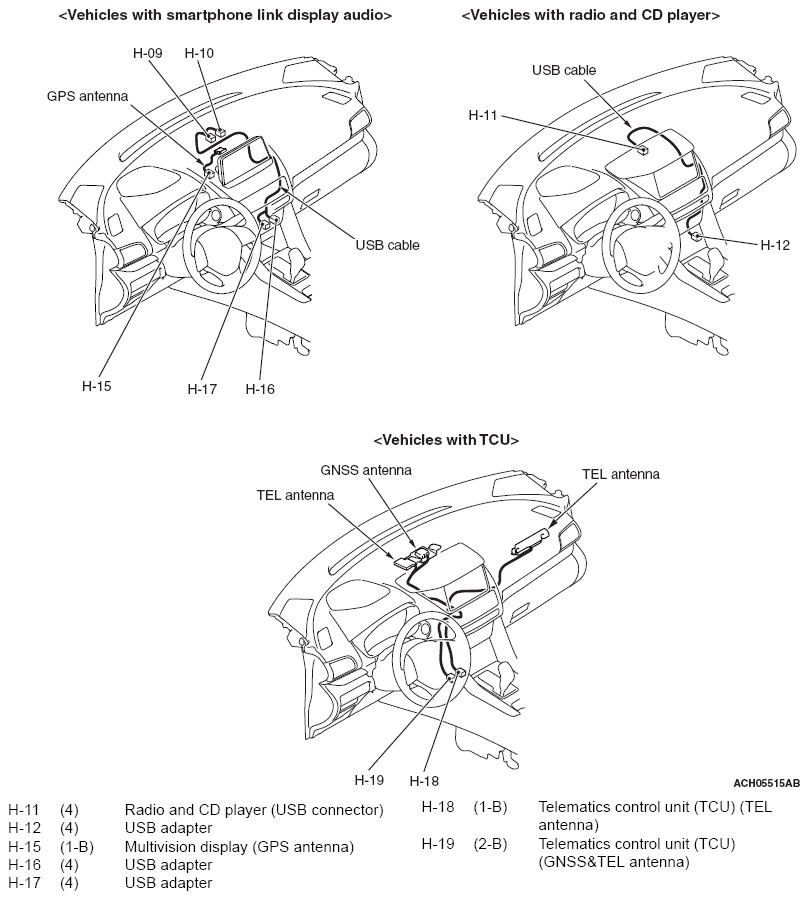

G13325684Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
