Removal And Installation

CAUTION:

Before commencing work, use the scan tool to read out the serial No. from the old TCM, which you will replace, and make a note of it (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE ).
When the TCM is replaced, carry out the following operations.
Learning Procedure (Refer to INITIALIZATION PROCEDURE FOR CVT LEARNED VALUE .)

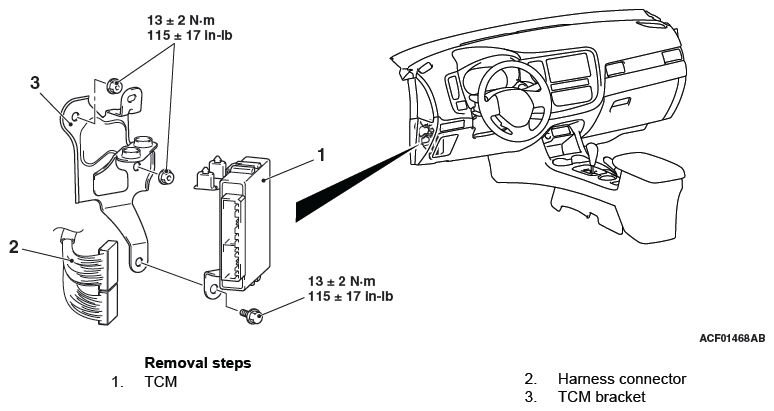

Fig 1: Removing/Installing Transaxle Control Module Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
