Removal And Installation: Notes

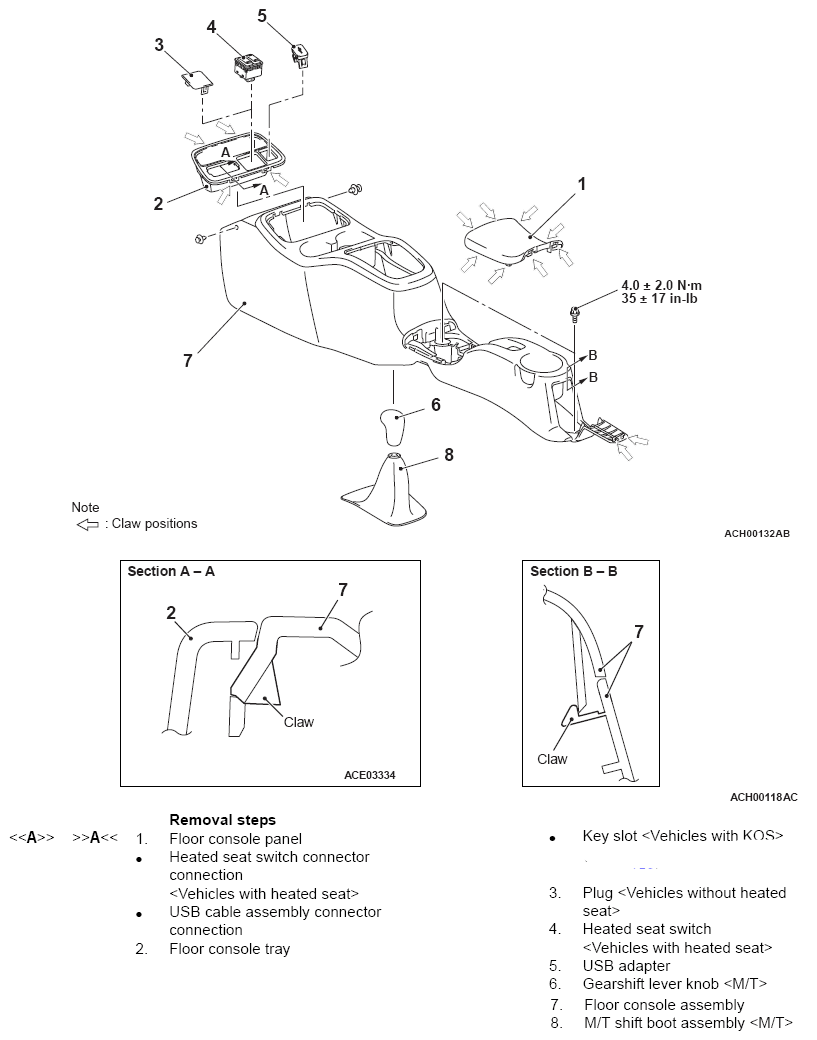

Fig 1: Removing/Installing Floor Console Assembly Components With Torque Specification
G12681704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
