Removal And Installation
Post-installation Operation
Refer to
LEARNING PROCEDURES OF POWER WINDOW FULLY CLOSED POSITION <Vehicles with safety system (driver's side door)>
.

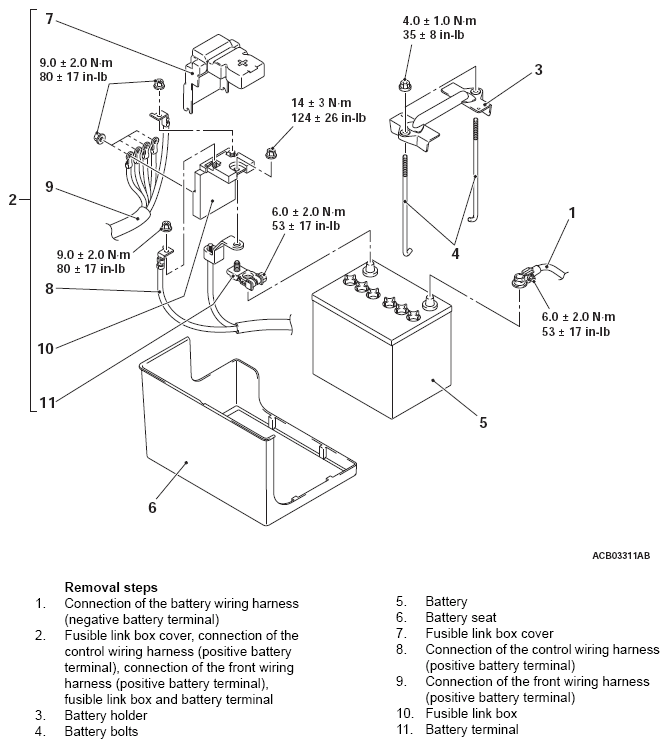

Fig 1: Removing/Installing Battery Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
