Removal And Installation: Notes

Post-installation operation

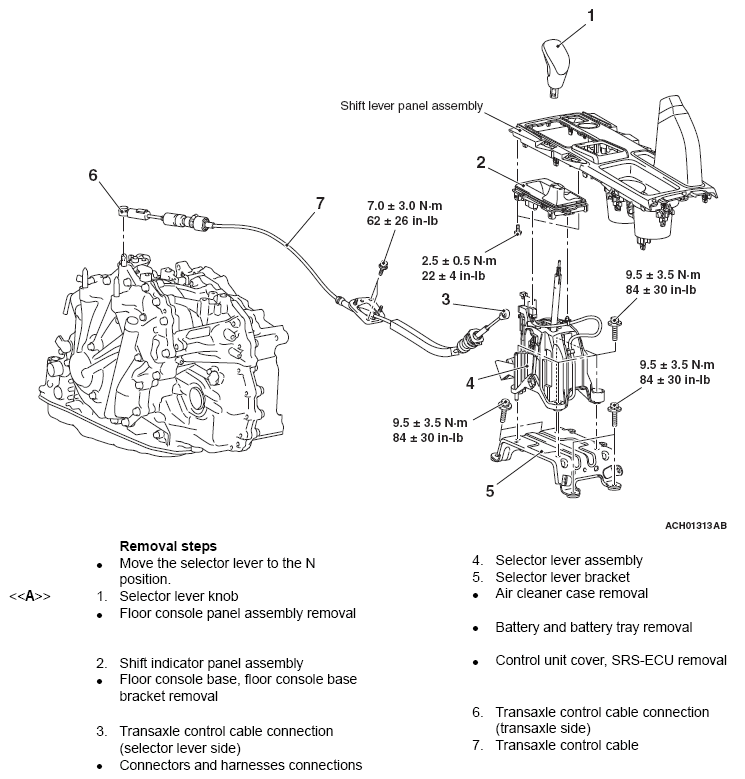

Fig 1: Removing/Installing Transaxle Control Components With Torque Specification
G12648683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
