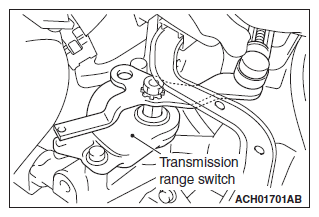

Transmission Range Switch Continuity Check

G12147251

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

G12147252

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Item	Terminal number	Resistance value
P	3 - 2, 7 - 10	Continuity exists (2 Ω or less).
P	Other than above	No continuity
R	3 - 9	Continuity exists (2 Ω or less).
R	Other than above	No continuity
N	3 - 8, 7 - 10	Continuity exists (2 Ω or less).
N	Other than above	No continuity
D	3 - 5	Continuity exists (2 Ω or less).
D	Other than above	No continuity
