Removal And Installation
Pre-removal and Post-installation Operation
Quarter Trim Upper LH (Refer to
REMOVAL AND INSTALLATION
).

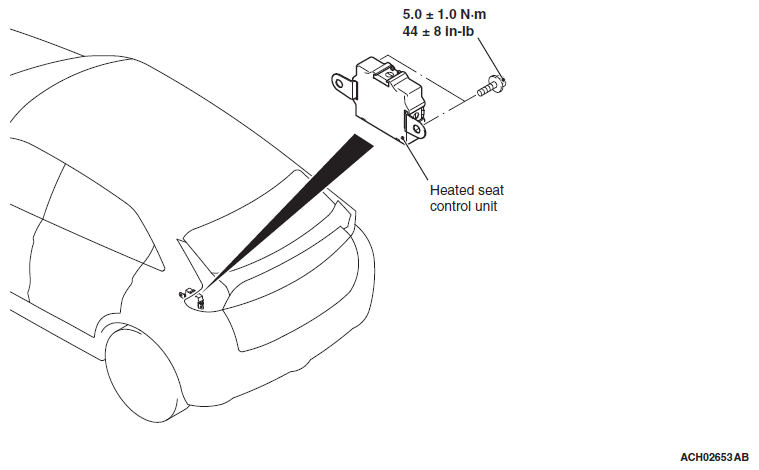

Fig 1: Removing/Installing Heated Seat Control Unit With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
