Removal And Installation: Notes

CAUTION:
  • When removing or installing the crankshaft position sensor, be careful not to apply impact to the sensor.
  • Do not reuse the crankshaft position sensor that has been dropped.
  • Do not reuse the linear air-fuel ratio sensor that has been dropped.

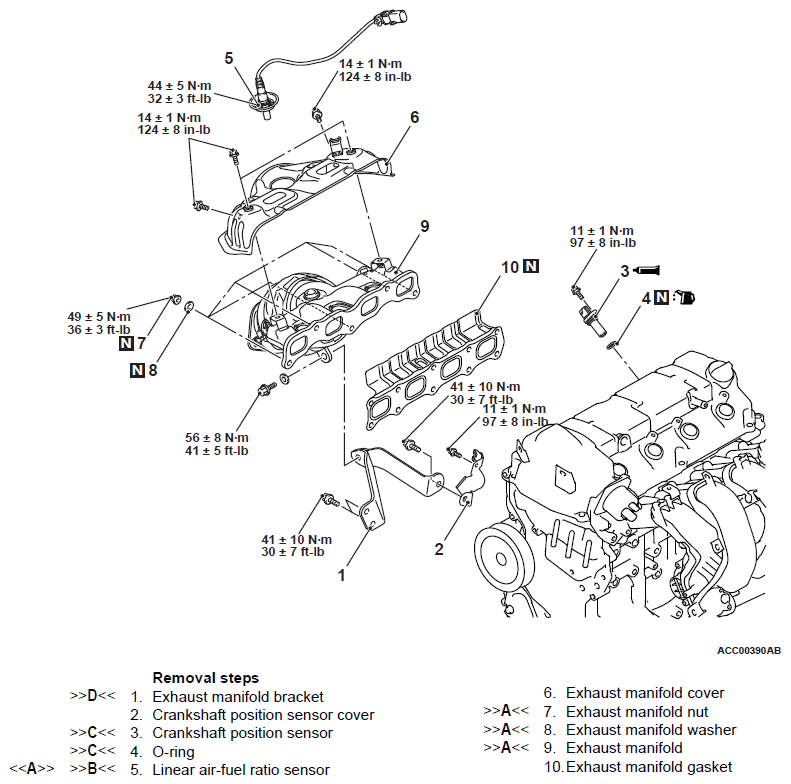

Fig 1: Removing/Installing Exhaust Manifold Components With Torque Specification
G12358618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
