Removal And Installation: Notes
Pre-removal Operation
Battery and Battery Tray Removal (Refer to
REMOVAL AND INSTALLATION
).
Air Cleaner Assembly Removal (Refer to
AIR CLEANER
) <2.4 L Engine>.
Air Cleaner Assembly Removal (Refer to
AIR CLEANER
) <3.0 L Engine>.
Engine Control Module Removal (Refer to
ENGINE CONTROL MODULE (ECM)
) <2.4 L Engine>.
Engine Control Module Removal (Refer to
ENGINE CONTROL MODULE (ECM)
) <3.0 L Engine>.
Post-installation Operation
Engine Control Module Installation (Refer to
ENGINE CONTROL MODULE (ECM)
) <2.4 L Engine>.
Engine Control Module Installation (Refer to
ENGINE CONTROL MODULE (ECM)
) <3.0 L Engine>.
Air Cleaner Assembly Installation (Refer to
AIR CLEANER
) <2.4 L Engine>.
Air Cleaner Assembly Installation (Refer to
AIR CLEANER
) <3.0 L Engine>.
Battery and Battery Tray Installation (Refer to
REMOVAL AND INSTALLATION
).

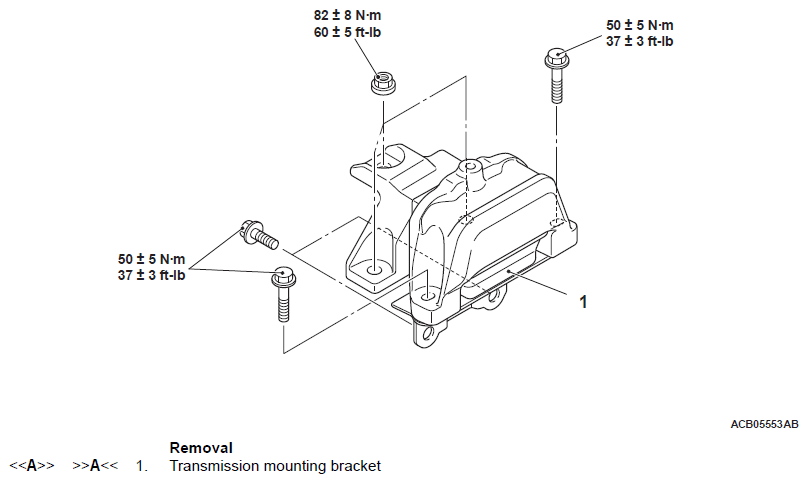

Fig 1: Removing/Installing Transaxle Mounting With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
