Removal And Installation: Notes

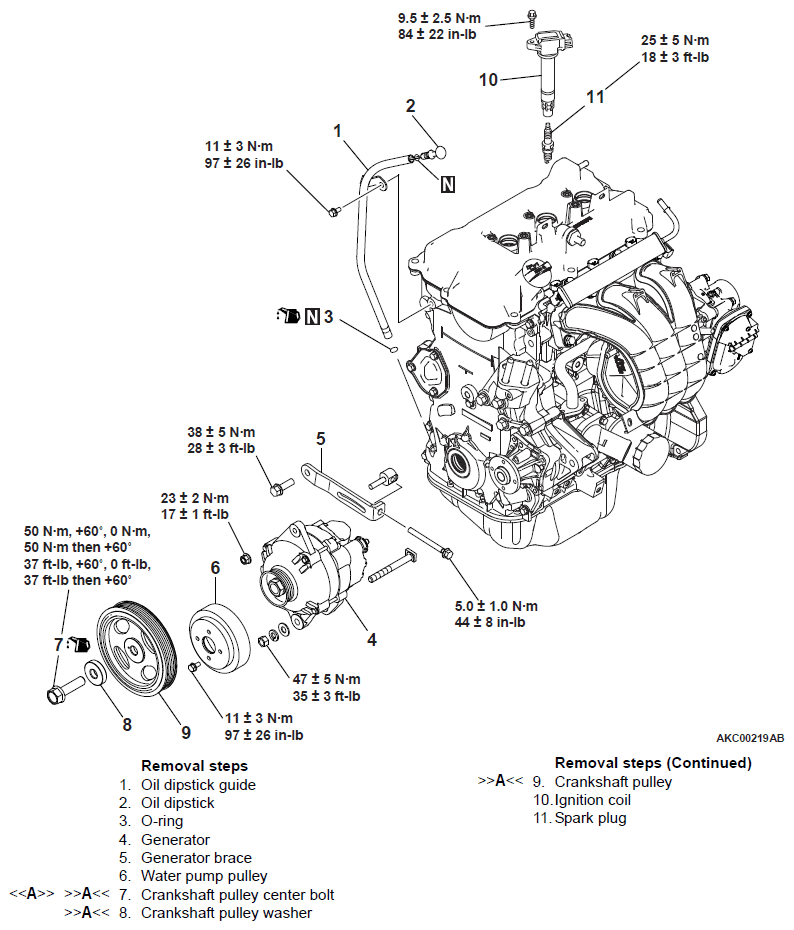

Fig 1: Generator Removal/Installation With Torque Specifications
G11479477Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
