Removal And Installation: Notes

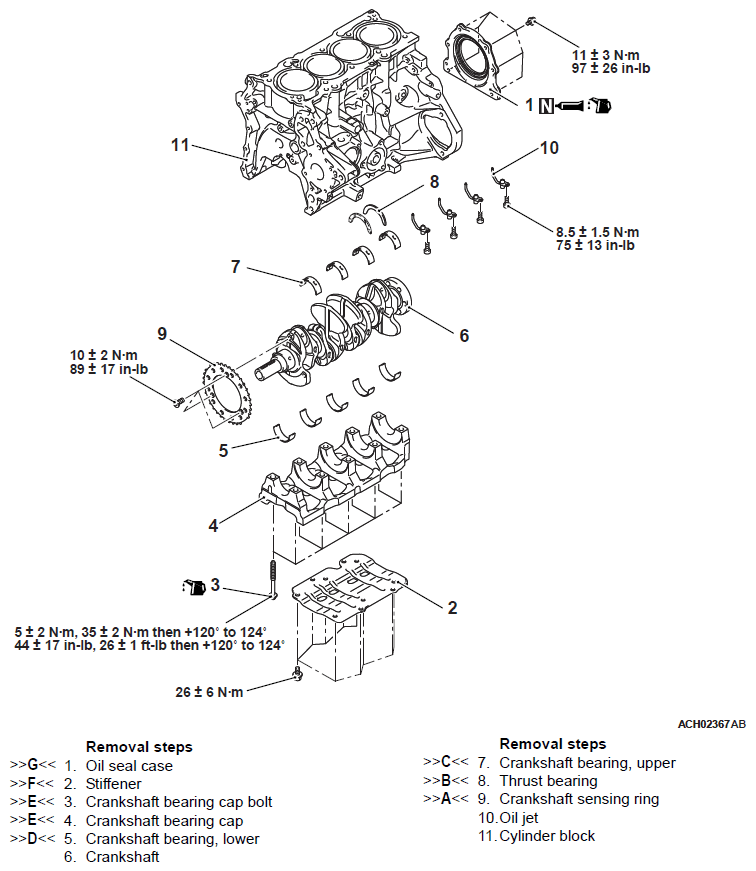

Fig 1: Crankshaft And Cylinder Block Component With Torque Specifications
G12143948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
