Removal And Installation: Notes
CAUTION:
When removing or installing the volume air flow sensor, be careful not to apply impact to the sensor.
Do not reuse the volume air flow sensor that has been dropped.

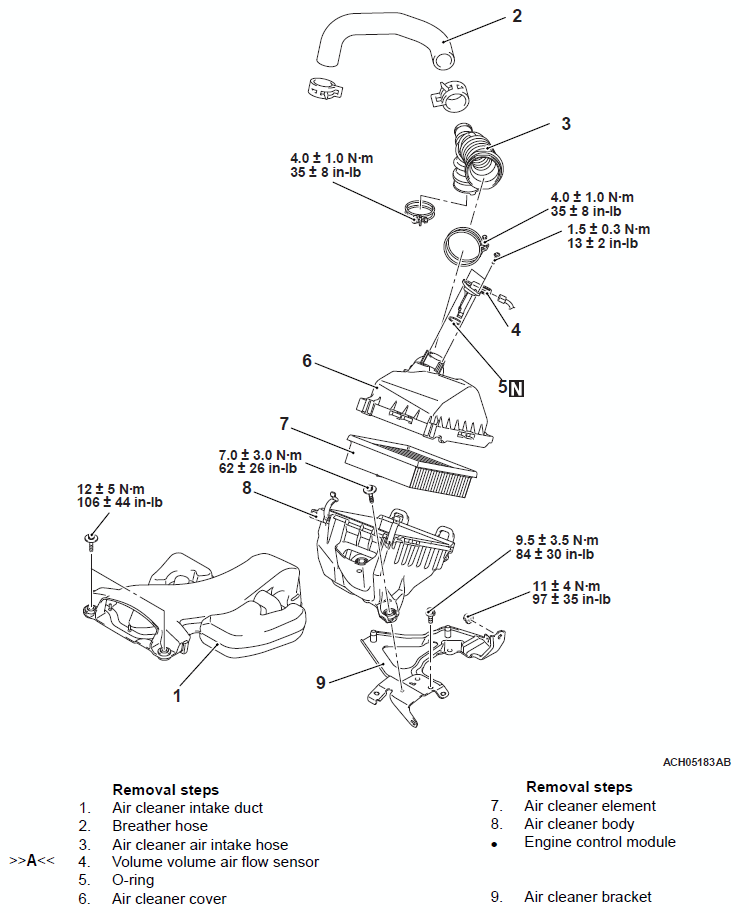

Fig 1: Air Cleaner Component With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
