Removal And Installation: Notes

M1332001901421

Post-installation Operation

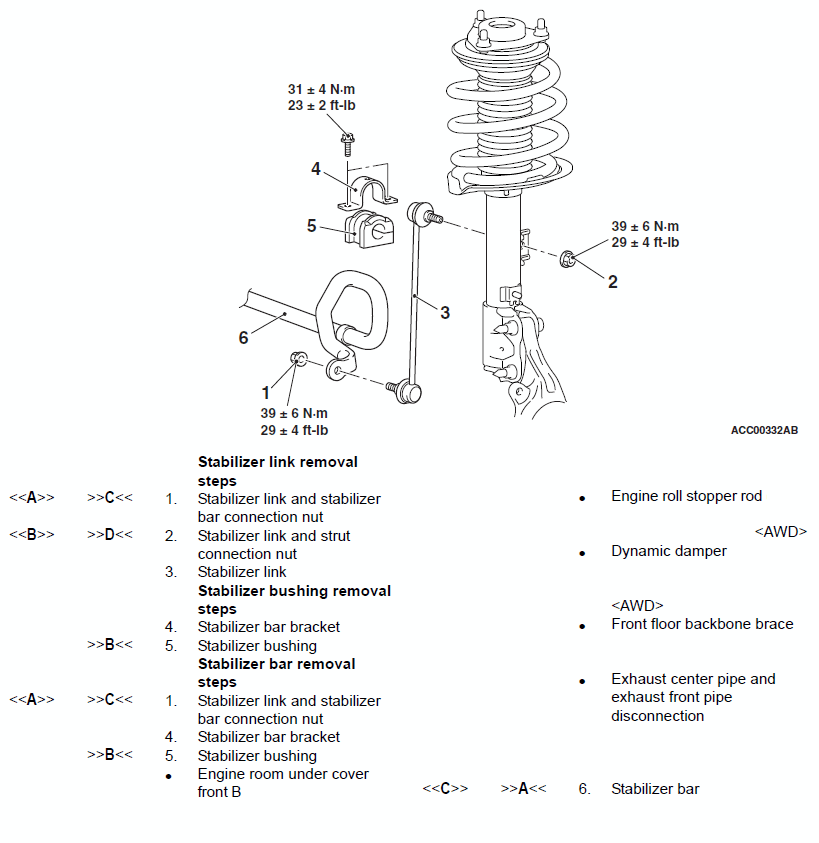

Fig 1: Stabilizer Bar Components With Torque Specifications
G12147662Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
