REMOVAL AND INSTALLATION <2.4L Engine>
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
REMOVAL AND INSTALLATION <2.4L Engine>

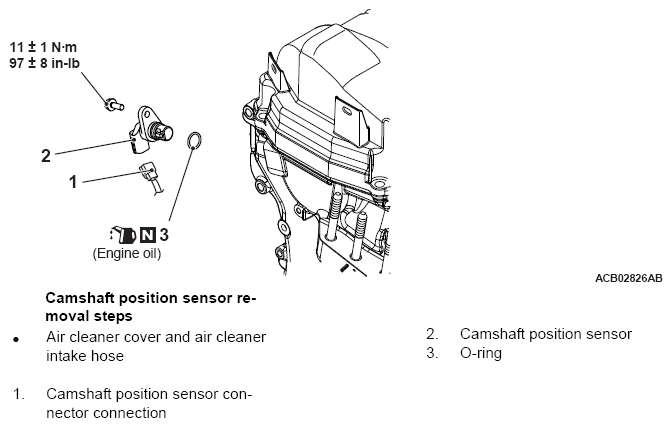

Fig 1: Removing/Installing Camshaft Position Sensor Components With Torque Specifications (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
