Removal And Installation

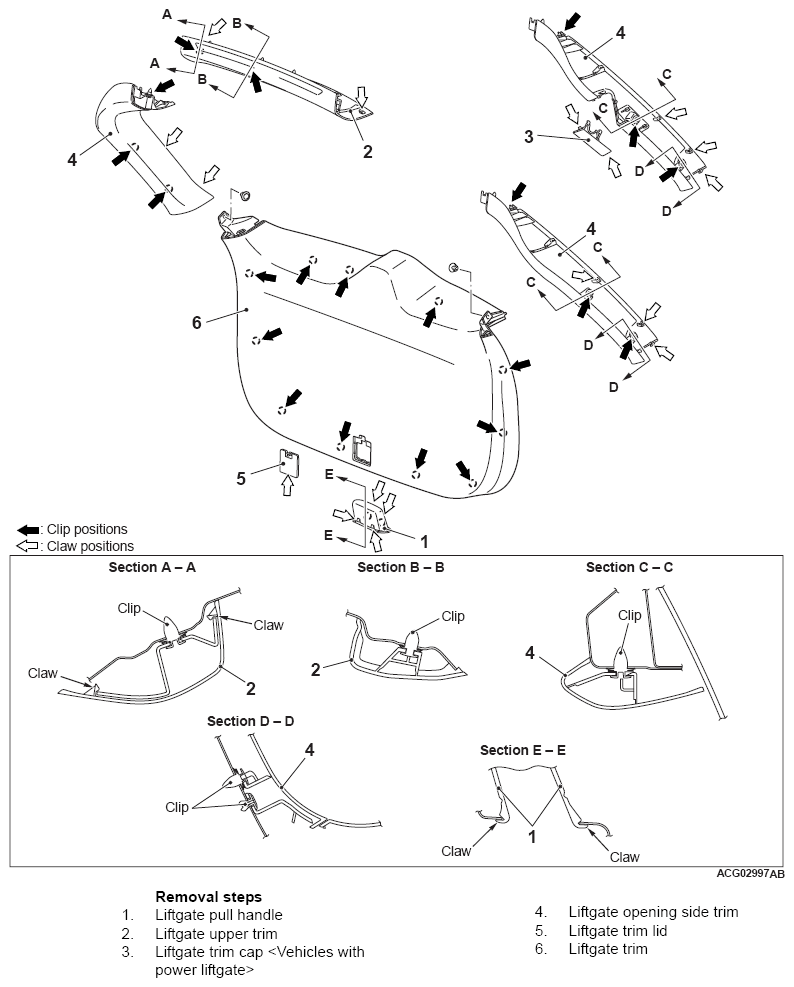

Fig 1: Removing/Installing Liftgate Trim Components
G12127337Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
