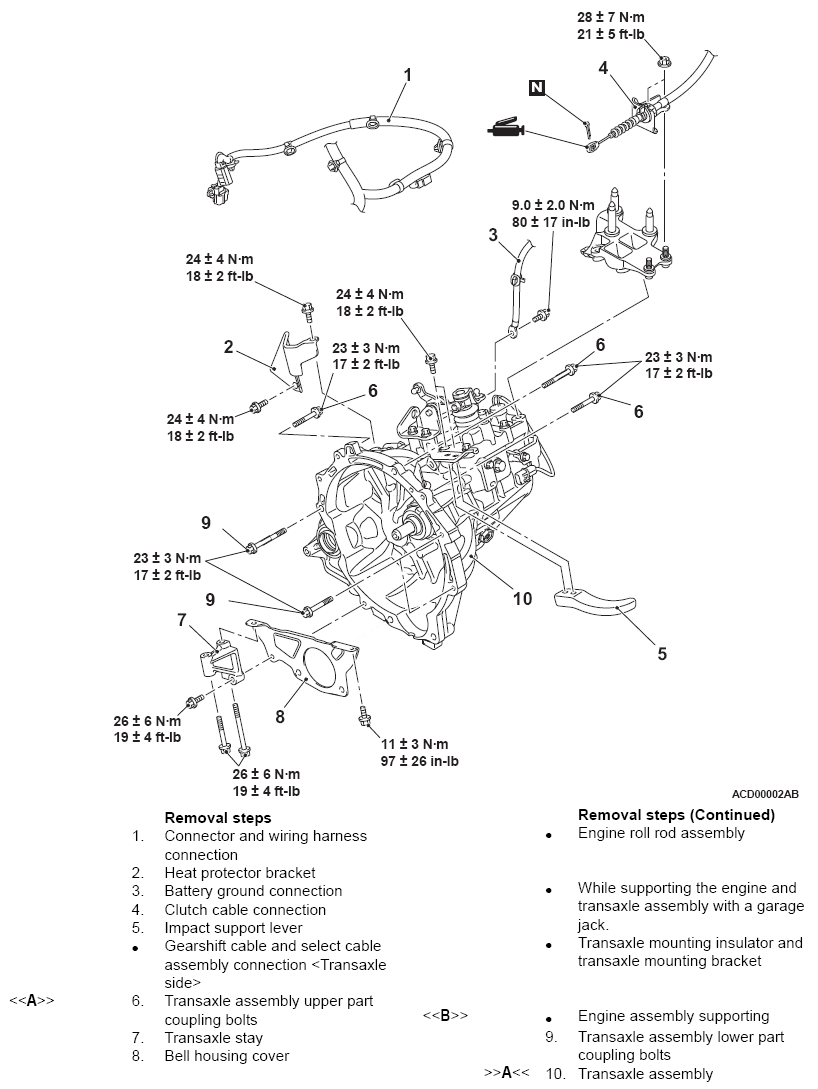

Removal And Installation: Notes
Pre-removal Operation
- Under Cover Front Removal (Refer to UNDER COVER ).
- Transmission Oil Draining (Refer to ON-VEHICLE SERVICE ).
- Starter Motor Assembly Removal (Refer to STATOR MOTOR ASSEMBLY ).
- Catalytic Converter Removal (Refer to EXHAUST PIPE AND MAIN MUFFLER ).
- Drive Shaft Removal (Refer to DRIVE SHAFT ASSEMBLY .)
- Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
- Battery and Battery Tray Removal (Refer to BATTERY ).
Post-installation Operation
- Clutch Pedal Check And Adjustment (Refer to GENERAL INFORMATION ).
- Battery and Battery Tray Installation (Refer to BATTERY ).
- Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
- Drive Shaft Installation (Refer to DRIVE SHAFT ASSEMBLY ).
- Catalytic Converter Installation (Refer to EXHAUST PIPE AND MAIN MUFFLER ).
- Starter Motor Assembly Installation (Refer to STATOR MOTOR ASSEMBLY ).
- Transmission Oil Refilling (Refer to ON-VEHICLE SERVICE ).
- Under Cover Front Installation (Refer to UNDER COVER ).
