Removal And Installation
Pre-removal and post-installation operation
Instrument Panel Cover Lower Removal and Installation (Refer to
INSTRUMENT LOWER PANEL
).

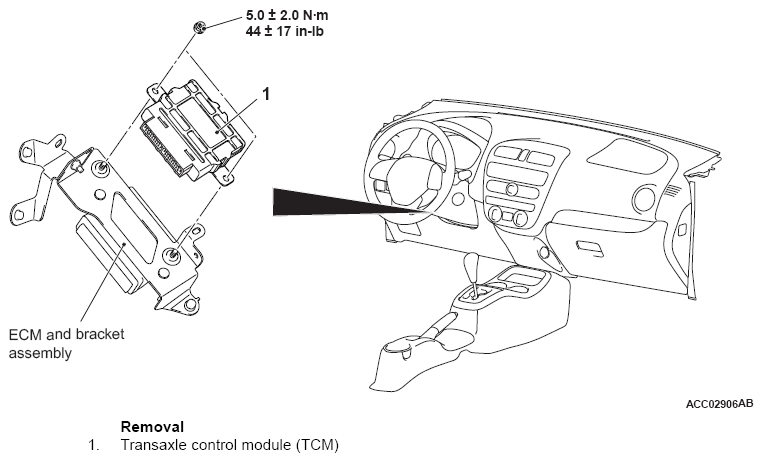

Fig 1: Transaxle Control Module Component With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
