Removal And Installation: Notes
Pre-removal operation
Under Cover Front Removal (Refer to Under Cover
REMOVAL AND INSTALLATION
).
Transmission Oil Draining (Refer to
ON-VEHICLE SERVICE
).
Starter Motor Assembly Removal (Refer to -
STARTER MOTOR ASSEMBLY
).
Drive Shaft Removal (Refer to -
DRIVE SHAFT ASSEMBLY
.)
Air Cleaner Assembly Removal (Refer to -
AIR CLEANER
).
Battery and Battery Tray Removal (Refer to -
REMOVAL AND INSTALLATION
).
Post-installation operation
Clutch Pedal Check And Adjustment (Refer to
GENERAL INFORMATION
).
Battery and Battery Tray Installation (Refer to -
REMOVAL AND INSTALLATION
).
Air Cleaner Assembly Installation (Refer to -
AIR CLEANER
).
Drive Shaft Installation (Refer to -
DRIVE SHAFT ASSEMBLY
).
Starter Motor Assembly Installation (Refer to -
STARTER MOTOR ASSEMBLY
).
Transmission Oil Refilling (Refer to
ON-VEHICLE SERVICE
).
Under Cover Front Installation (Refer to - Under Cover -
REMOVAL AND INSTALLATION
).

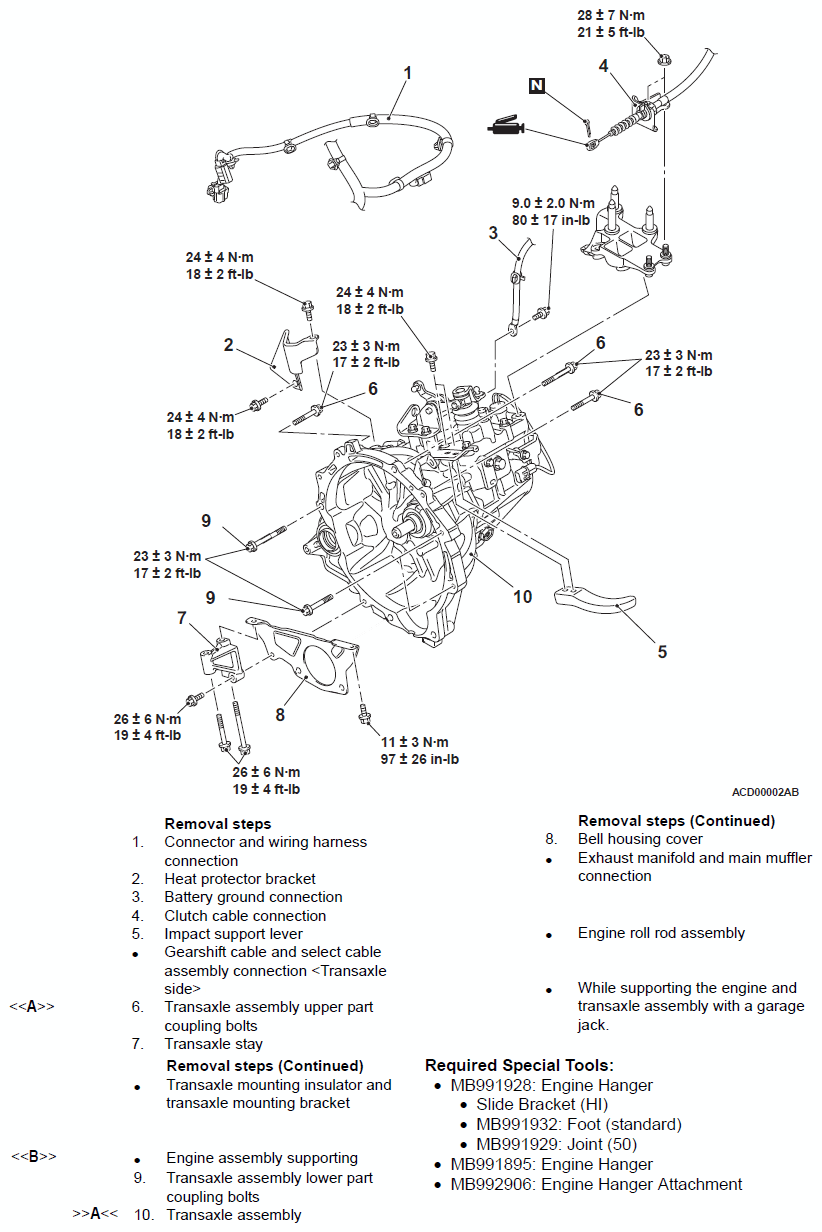

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
