Disassembly And Reassembly: Notes

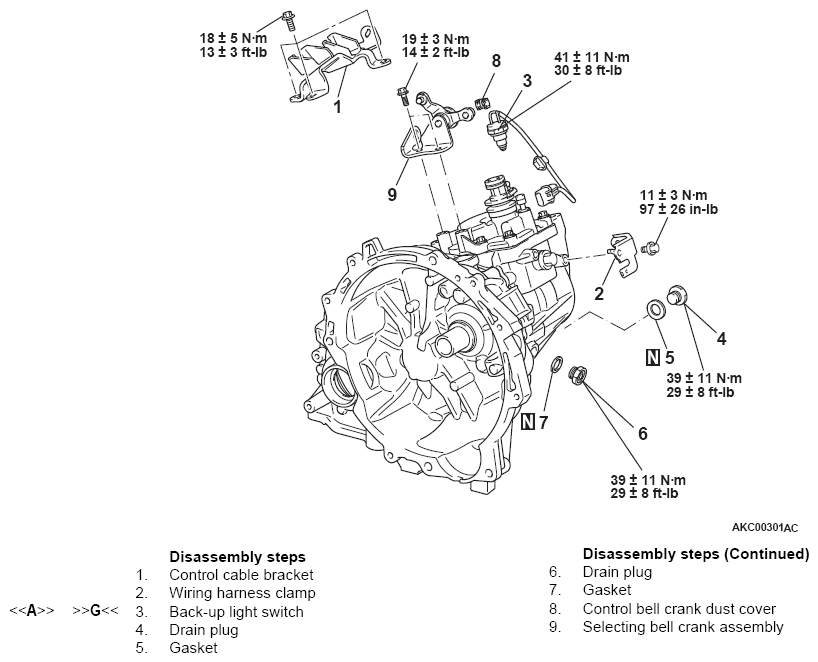

Fig 1: Transaxle Components With Torque Specifications (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

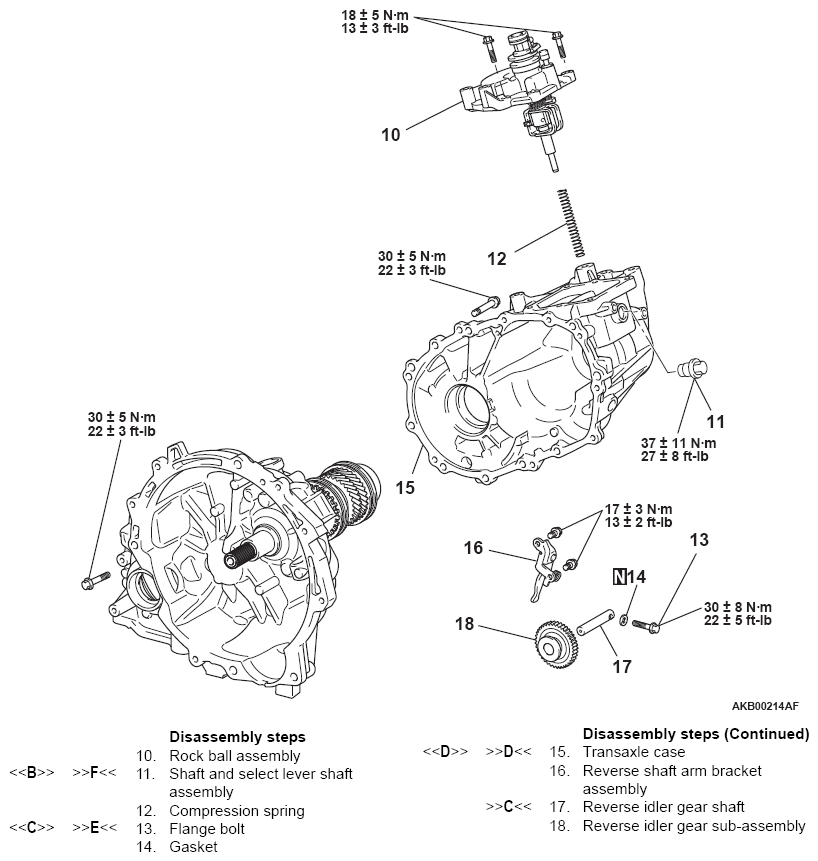

Fig 2: Transaxle Components With Torque Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

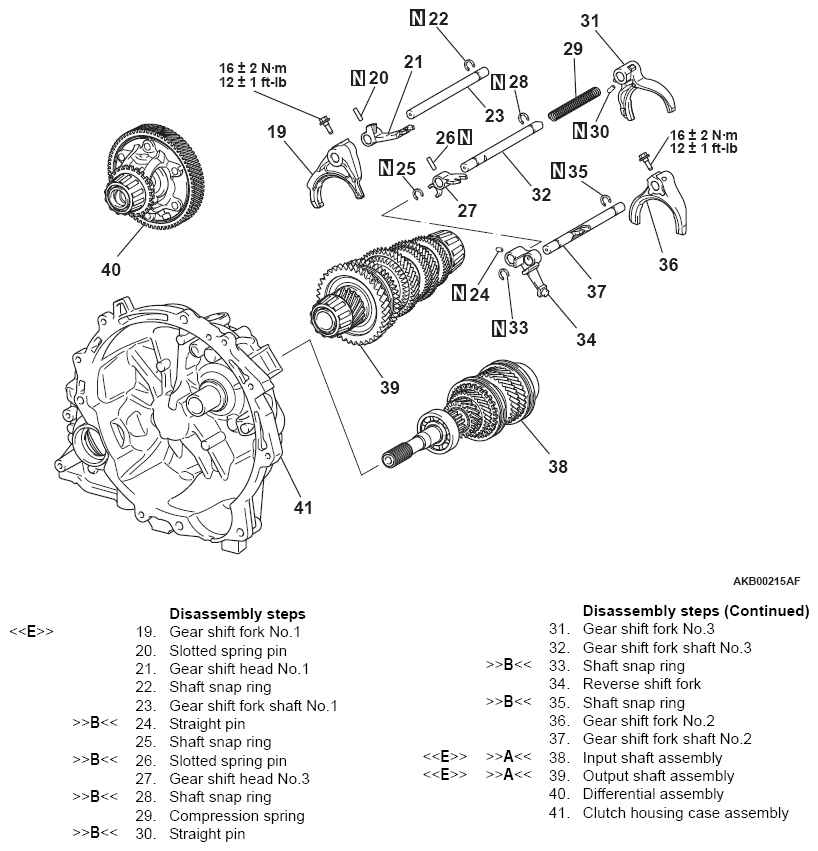

Fig 3: Transaxle Components With Torque Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
