CAN Module Memory Data Indication

Select "CAN Module Memory Data Ind" button on "CAN Comm Confirmation" screen.

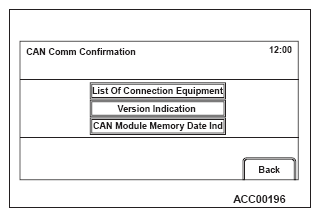

Fig 1: CAN Comm Confirmation Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
"CAN Module Memory Data Ind" will be displayed. A respective data will be displayed by selecting each button ("Various Data", "Coding data", "Chrono Stack").

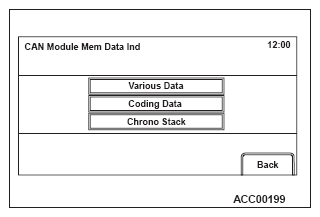

Fig 2: CAN Module Memory Data Ind Screen Display
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Select "Various Data."

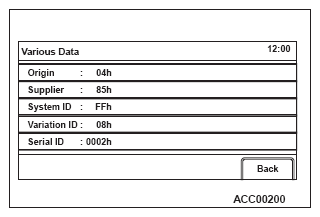

  Fig 3: Radio And CD Player Screen Display - Various Data
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Select "Coding Data."

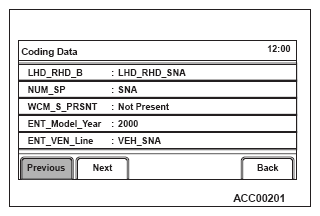

  Fig 4: Radio And CD Player Screen Display - Coding Data (1 Of 2)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

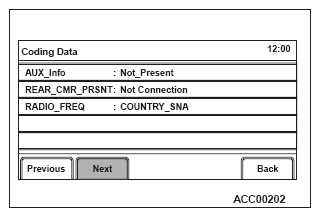

  Fig 5: Radio And CD Player Screen Display - Coding Data (2 Of 2)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Select "Chrono Stack."

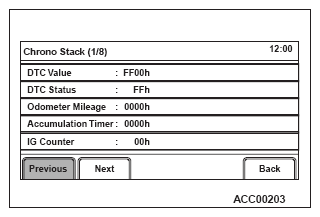

Fig 6: Radio And CD Player Screen Display - Chrono Stack
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
