Mitsubishi
>>
2017
>>
Lancer SE
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transaxle On-Vehicle Service
>>
General Information
>>
Description Of Structure And Operation
>>
Sectional View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Sectional View

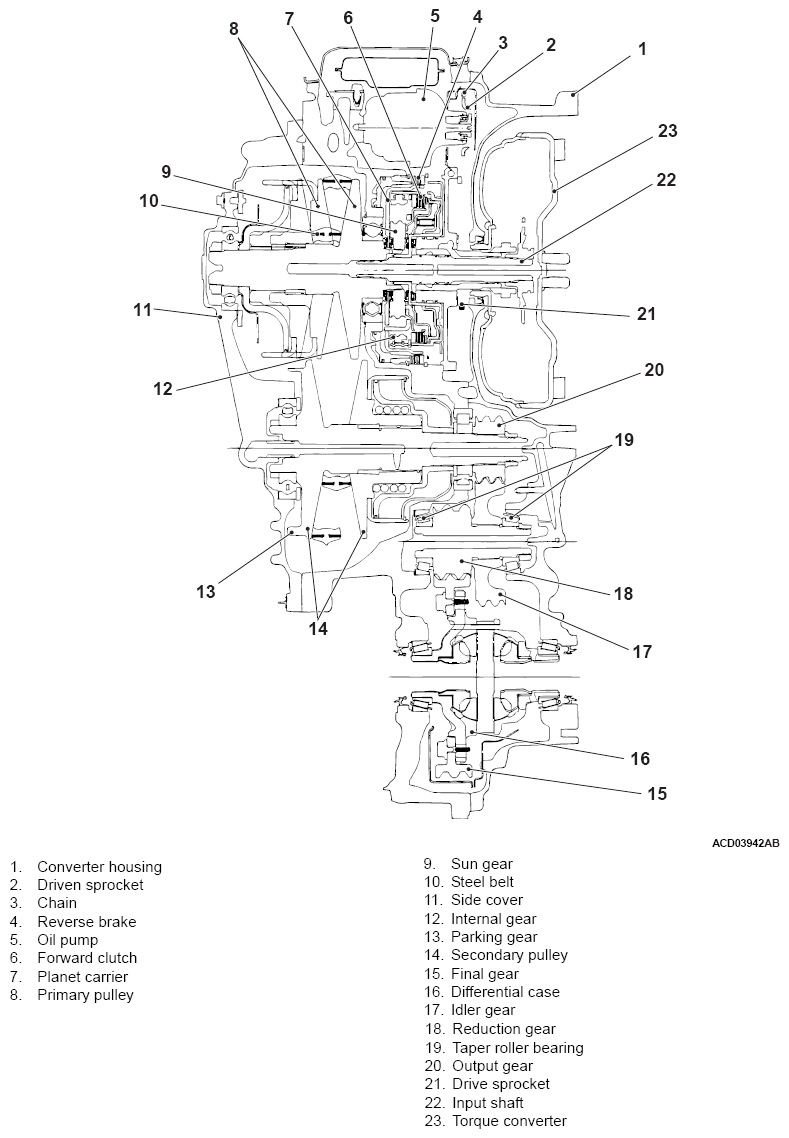

Fig 1: Sectional View Of CVT
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
