Removal And Installation: Notes
NOTE:
ABS-ECU is located in the hydraulic unit.
Pre-removal operation
Strut tower bar removal (Refer to
REMOVAL AND INSTALLATION
) <Vehicles with strut tower bar>.
Brake fluid draining.
Post-installation operation
Brake fluid refilling and air bleeding (Refer to
BLEEDING
).
Strut tower bar installation (Refer to
REMOVAL AND INSTALLATION
) <Vehicles with strut tower bar>.
Hydraulic unit check (Refer to
WHEEL SPEED SENSOR OUTPUT CURRENT MEASUREMENT
).

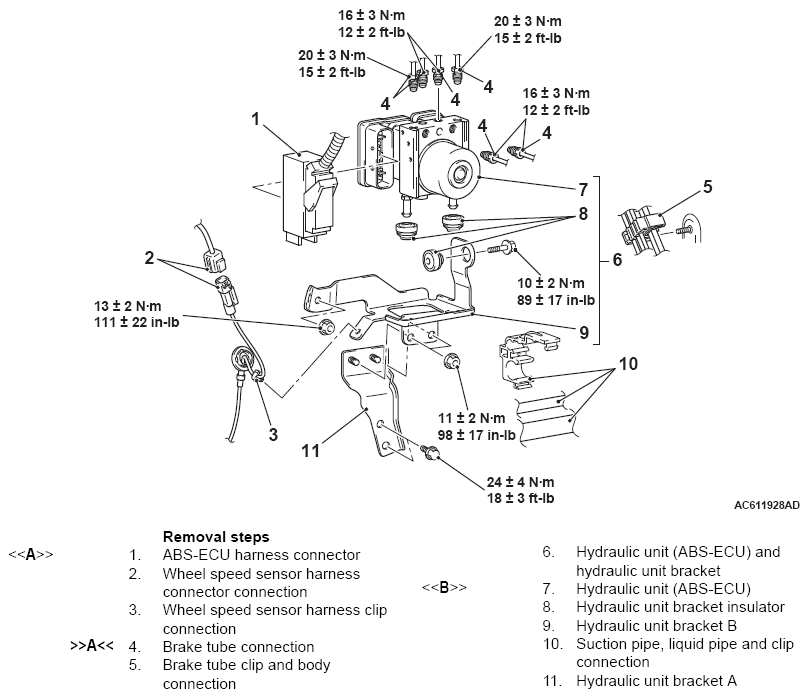

Fig 1: Hydraulic Unit Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
