Removal And Installation: Notes

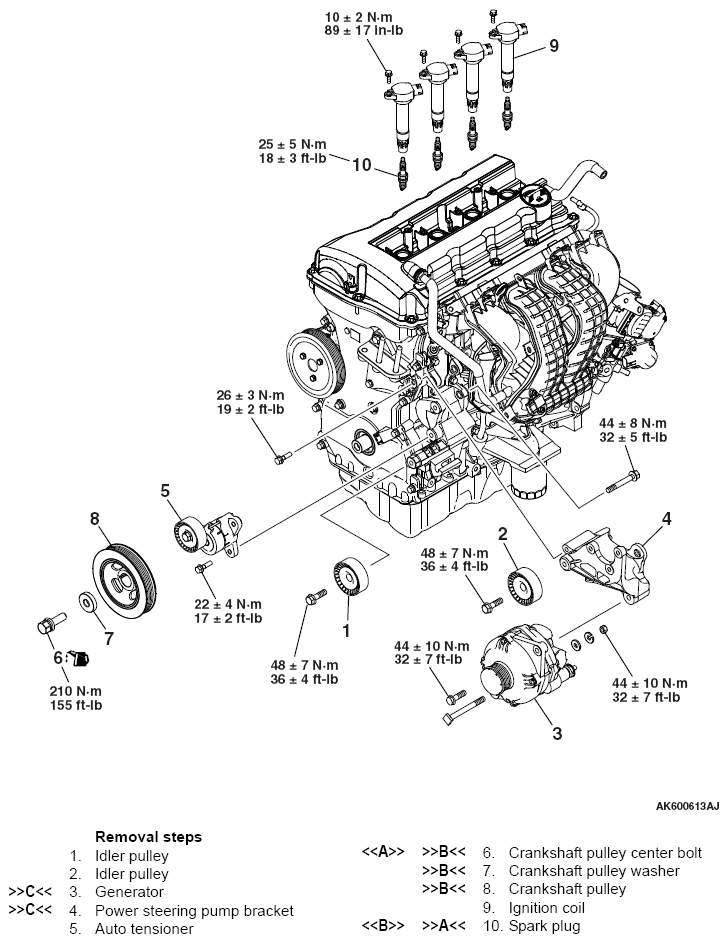

Fig 1: Generator And Ignition System Components With Torque Specifications
G09619783Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

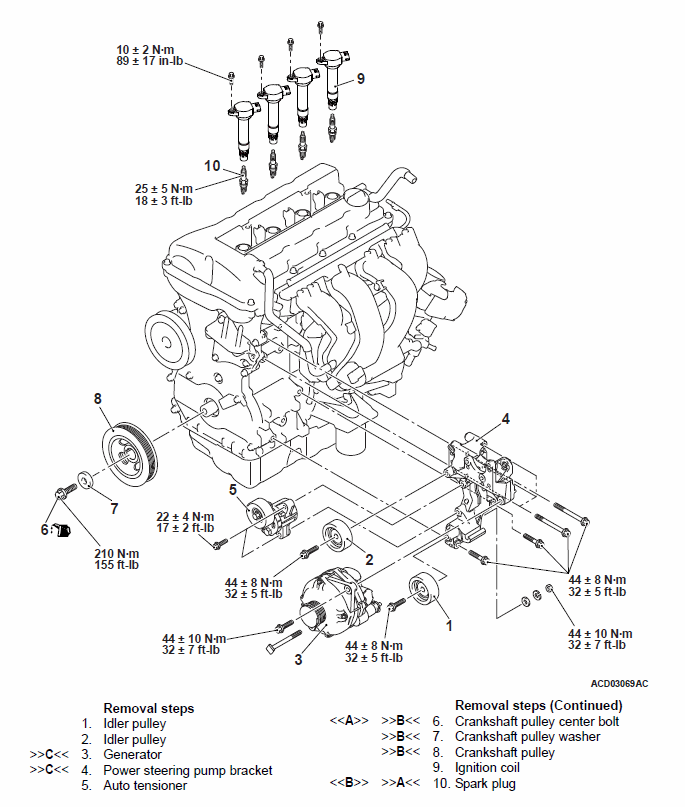

Fig 2: Generator And Ignition System Components With Torque Specifications (2016)
G00563918Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
