Check Oil Level And Condition

  1. Remove the filler plug and gasket.
  2. Check that the oil level is just below the lower edge of the filler plug hole.
  3. Check that the oil is not excessively foul and has moderate viscosity.
  4. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

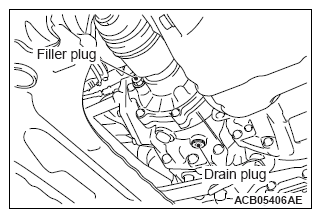

    Fig 1: Identifying Filler And Drain Plug
    G10221632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Checking Oil Level
    G06480808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
